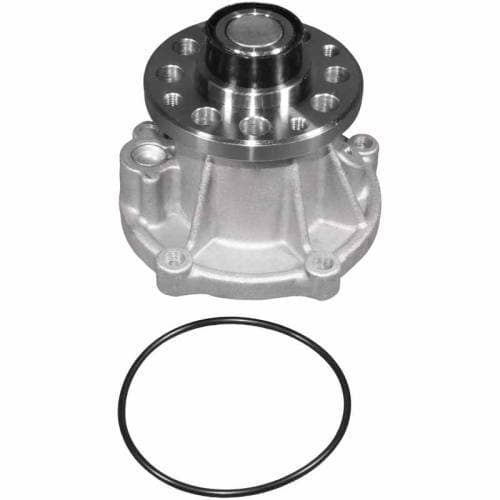

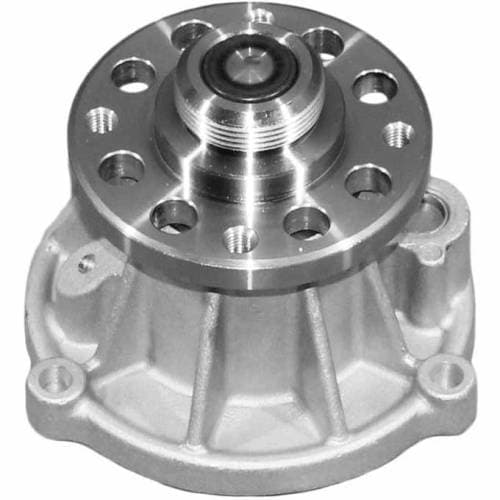

Each pump is manufactured to match the factory specifications. This ensures that you get a high-quality direct-fit replacement for a perfect fit and function. Includes new water pump coolant tube.
Features
•Includes O-Ring
•Direct-Fit Replacement
•Meets OEM Specifications

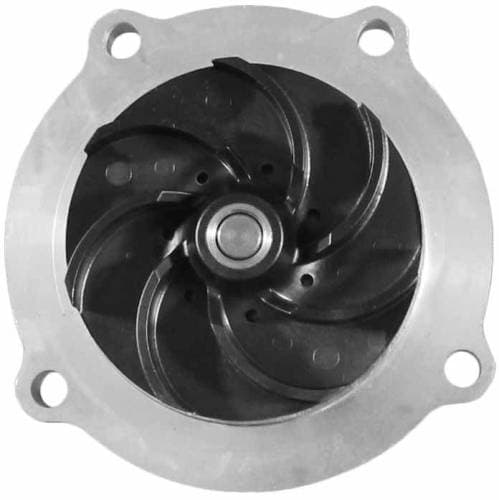

•90mm Impeller (Factory Size For 2003-2004 Models)
Specifications:
•Fan Clutch Included: No
•Housing Material: Aluminum

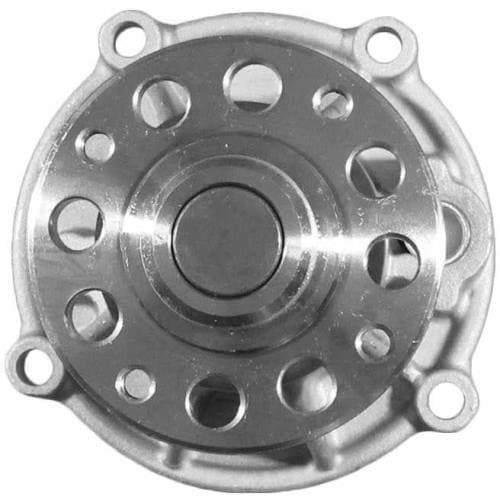

•Hub Height IN: 3.105
•Hub Hole Quantity: 12
•Impeller Material: Plastic
•Impeller Rotation: Reverse
•Impeller Vane Quantity: 7
•Includes Back Housing: No
•Mounting Hardware Included: No
•Mounting Hole Quantity: 4
•Pulley Included: No
•Thermostat And Housing Included: No
Vehicle Fitment:
2003-04 Ford 6.0L Power Stroke
Model Year Information:
2003 Models: If you have a 2003 you are in the 2003-2004.25 production date.
2004 Models: If you have a 2004 model you must check your VIN code to determine your production date.
2005 Models: If you have a 2005 or newer, you have a 2004.25 and newer production date.
A sample VIN code is: 1FTRW21P24EB10150. In the middle of the VIN code, you see the digits "4EB". The 4 means that it was a 2004 model year. The "E" denotes which production plant built your truck. In this case, E is for Kentucky. Lastly, the "B" is the start of the sequence number (the last 6 digits of the VIN). Some early 2004 models have a "4EA" code. The "A" denotes the early build and most likely is a 2003-2004.25 production date. For example letter "B", "C", "D" or more all denote later model 2004 builds with 2004.25 and newer production dates, or if the water pump is already off the truck you can measure the impeller.
