HOME / PRODUCT / XDP X220 Series Head Stud Kit for Ford (2008-10) 6.4L Power Stroke
SaleXDP X220 Series Head Stud Kit for Ford (2008-10) 6.4L Power Stroke

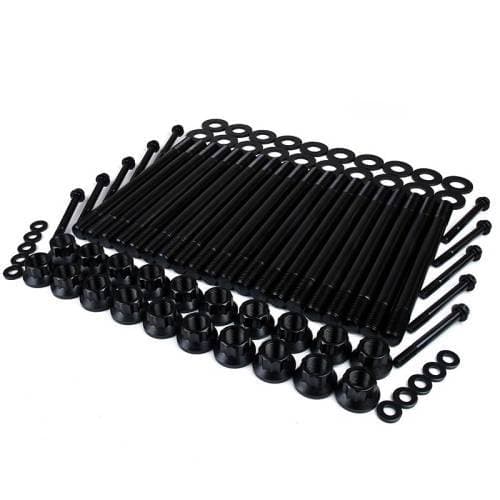

XDP X220 Series Head Stud Kit for Ford (2008-10) 6.4L Power Stroke

SKU: HVCDXD3004HS

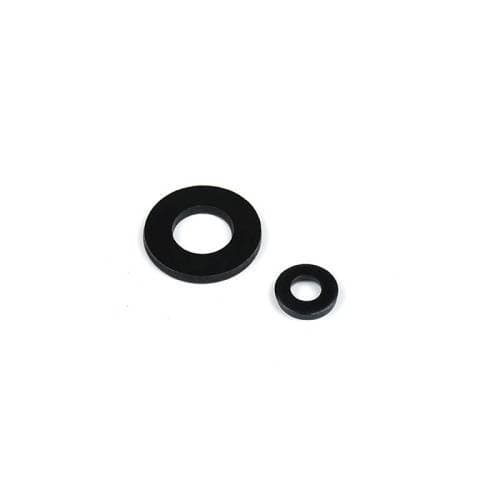

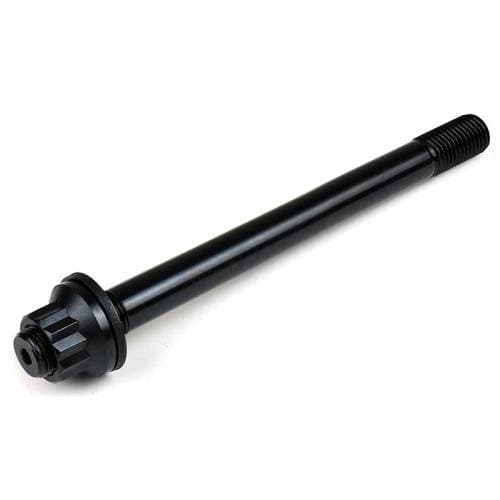

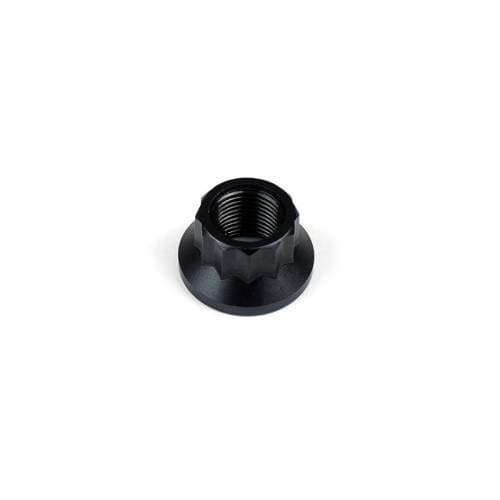

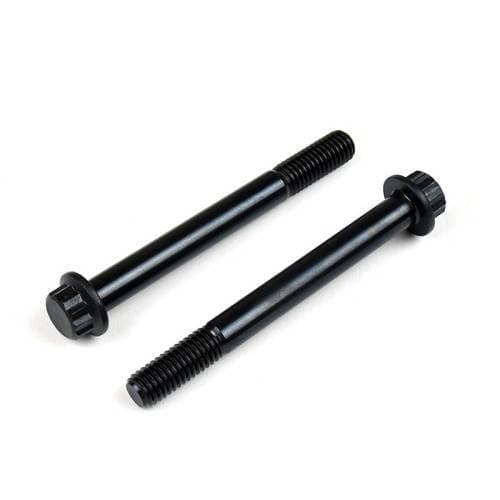

XDP X220 Series Head Stud Kit for Ford 6.4L Power Stroke Replace the OEM head bolts in your 2008-2010 Ford 6.4L Powerstroke with the XDP X220 Series Head Stud Kit XD3004HS. Upgrading to these head studs helps avoid the common head gasket failure issues that arise when you start adding more horsepower and torque to your Super Duty. The 8740 Chromoly Steel construction with an added proprietary element is more durable and will not stretch like the factory bolts. The threads are rolled after heat-treating to provide optimum fatigue strength. These heavy-duty, reusable head studs are rated at 225,000+ psi tensile strength and 205,000+ yield strength to ensure better clamping force under higher combustion pressures to help prevent a lifted cylinder head or a failed head gasket. FEATURES: •Includes Washers & 12 Point Nuts •Yield Strength 205K psi - 215K psi •Tensile Strength 225K psi - 233K psi •Threads Rolled After Heat Treatment •Reusable Studs, Unlike TTY OEM Bolts •10mm Studs Test Out At Max Load Of Over 120KN •Manufactured In ISO/TS 16949 Quality Control Facility •8740 Chromoly Steel Construction With Added Proprietary Element
$484.95$509.20
Loading options…

Description

In addition to the increased strength, replacing the factory head bolts with studs also allows you to obtain a more precise torque reading. A conventional bolt gets twisted as it is tightened, so it's reacting to two different forces at the same time. With a stud the force gets applied to the vertical axis, resulting in a more even clamping force. These studs are a must-have for high-horsepower applications and are reusable, unlike the OEM Torque-To-Yield (TTY) bolts which must be replaced after each use. Another benefit of studs is they provide for easier engine assembly and proper alignment of the cylinder heads every time. To ensure maximum quality the studs are manufactured in an ISO/TS 16949 quality control facility. For a hassle-free installation, each set includes installation instructions.
