Specifications:
•Rated Line Pull (Single Line) 12,000lbs (5443 kg)
•No Load Line Speed 31 ft/min (9.45m/min)
•Rated Load Line Speed 3 ft/min (0.91m/min)
•No Load Motor Current 67 Amps
•Rated load motor current 466 Amps
•Motor 12V DC, series wound (exclusive WARN high-performance design)
•Electrical controls Contactor
•Wiring Automotive OE-grade buss bars
•Corrosion Resistance 408 hour salt spray
•Ingress Protection IP68 submersion and IP69K spray testing (entire unit)

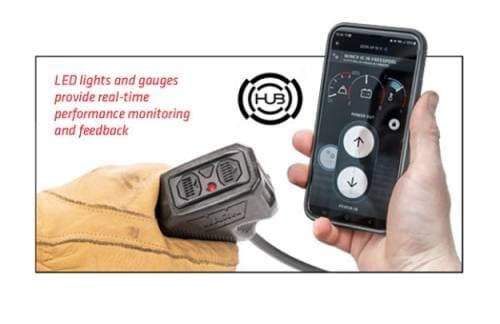

•Remote Control Corded remote with LED feedback light, plus bluetooth enabled HUB Wireless Receiver integrated into the control pack

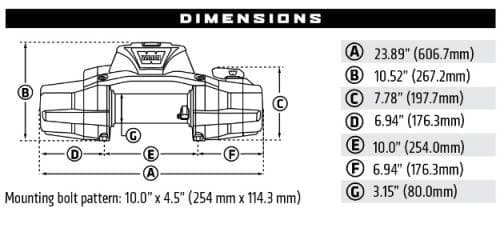

•Drum diameter/Length 3.15”/9.0” (80mm/229mm)

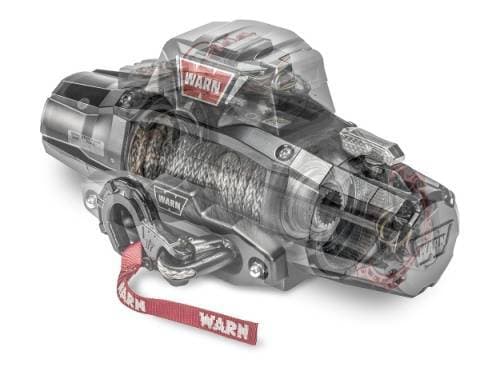

•Geartrain 3-stage planetary
•Gear Ratio 141:1
•Clutch (freespooling) Rotating ring gear with stainless steel clutch lever. Both manual and remote activated operation.
•Brake Automatic, six segment mechanical cone
•Rope 3/8” X 80’ (9.52mm x 24.38m) Spydura Pro Synthetic
•Fairlead Black anodized, forged aluminum hawse
•Recommended Battery 650 CCA minimum for winching
•Battery leads 2 gauge, 72” (1.83m)
•Zeon Finish Satin-black powder coat
•Final point of assembly Warn facility in Clackamas, Oregon, USA
•Warranty Limited lifetime mechanical, 7 years electrical
•Weight 85lbs (in box)
