HOME / PRODUCT / Warn Zeon XC 14 - No Rope - 110314
SaleWarn Zeon XC 14 - No Rope - 110314

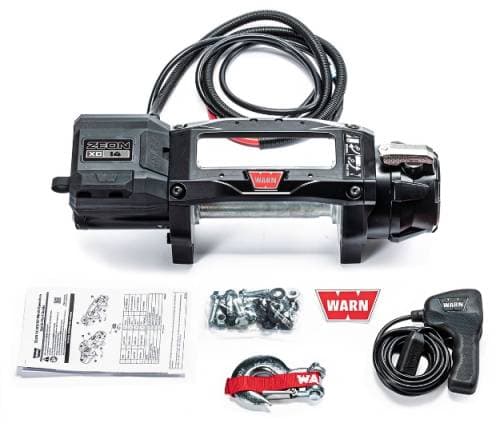

Warn Zeon XC 14 - No Rope - 110314

SKU: BCSQ110314
Warn Zeon XC 14 - No Rope - 110314 14,000 lbs. single-line pulling capacity. Winch only with ruggedized corded remote. Rope and fairlead sold separately. The compact, low-profile ZEON XC winch delivers unmatched performance with best-in-class line speed and capacity. Engineered, tested, and assembled at our Clackamas, Oregon facility, •ZEON XC is a premium, ultra-reliable recovery tool that’s backed by the industry’s leading warranty. •All the performance of the ZEON XD winches but in a more compact size for mounting in tighter spaces •High-performance, high-efficiency motor and geartrain delivers blazing fast no-load line speeds of up to 40 ft/min—the fastest in its class •Reliable waterproof construction features o-ring rubber sealing. The entire winch is IP68 submersion and IP69K high pressure spray rated •Corrosion resistant black fasteners meet the highest OEM-grade specifications •All-new low-profile control box with WARN exclusive Albright contactor and bus bars for ultimate control, reliability and efficiency •Remote socket can be relocated up to 9” away from control pack without disassembly •Control pack can be relocated off of the winch using one of WARN’s control pack relocation kit (PN 111872: ZEON XC 31” relocation kit; PN 111991: ZEON XC 78” relocation kit) •Motor can be rotated up to 90° forward; control pack moves with motor; transmission can be clocked up to five different positions •The ZEON XC fairleads can be utilized for both feet down and feet forward installations — no separate offset fairlead is needed •Large diameter aluminum-alloy drum reduces rope wear and helps to dissipate brake heat. The patented rope anchor system is the strongest on the market, and allows for easy rope installation •Automatic load-holding cone brake offers excellent control and holding strength •Exceptionally durable corded remote with 12’ lead •Industry-leading warranty: Limited lifetime mechanical, seven year electrical—all backed by a global service network
$1,659.99$1,992.99
Loading options…

Description

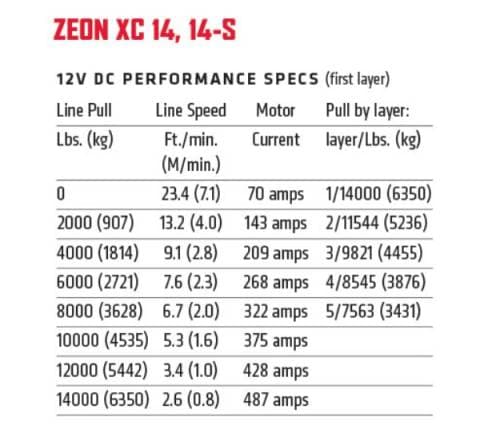

Specifications:
•Rated Line Pull (Single Line) 14,000 lbs. (6350 kg)
•Motor 12V DC, series wound
•Electrical controls Albright Contactor
•Remote Control Corded remote with 12’ (3.7m) lead
•Geartrain 3-stage planetary
•Gear Ratio 213:1
•Clutch (freespooling) Rotating Ring Gear
•Brake Automatic, six segment mechanical cone
•Drum diameter/Length 3.15”/9.0” (80mm/229mm)
•Rope No Rope
•Fairlead No Fairlead
•Recommended Battery 650 CCA minimum for winching
•Battery leads 2 gauge, 72” (1.83m)
•Zeon Finish Satin-black powder coat
•Corrosion Resistance 408 hour salt spray, OEM grade fasteners
•Ingress Protection IP68/IP69K rated waterproof
•Warranty Limited lifetime mechanical, 7 years electrical

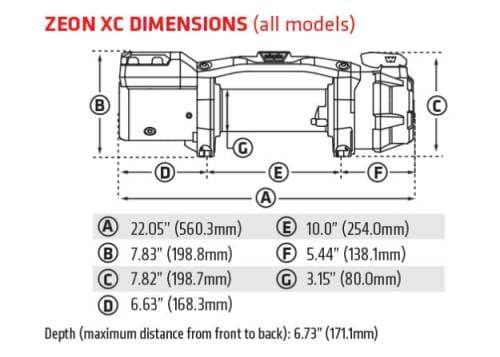

•Zeon Dimensions length: 22.06" (560.3mm), height: 7.83" (198.8mm)
•Mounting Bolt Pattern 10" x 4.5" (254mm x 80mm)
