HOME / PRODUCT / Warn M8274-S 10,000lb Winch - Synthetic - 106175
SaleWarn M8274-S 10,000lb Winch - Synthetic - 106175

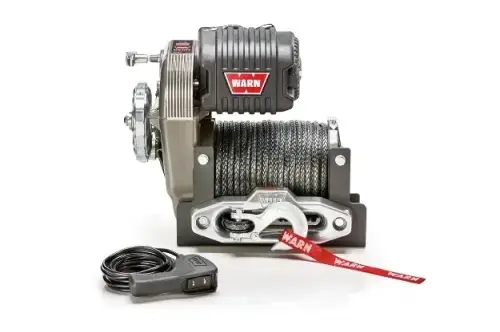

Warn M8274-S 10,000lb Winch - Synthetic - 106175

SKU: BCSQ106175
Warn M8274-S 10,000lb Winch - Synthetic - 106175 The M8274-S Warn Industries’ most iconic winch—is evolving. It will maintain all the things buyers love about the product: speed, durability, and its famous shape, but we’ve added more performance and more features. Comes with 150’ of 3/8” diameter lightweight, easy-to-handle Spydura synthetic rope. •High-output 6 HP motor for increased 10,000 lb. pulling capacity (up from 8,000 lbs.)—ideal for today’s larger, heavier vehicles •IP68 waterproof Albright electrical contactor for the ultimate in reliability and control •Restyled high-strength polymer control pack housing for a modern twist on classic styling •Ergonomic stainless steel clutch T-handle is easier to use than before •Two Oilite® bushings installed on pinion gear assembly for improved durability in extreme recovery conditions •Bolt-and-washer assembly replaces retaining ring on brake shaft •Made in the USA in Clackamas, Oregon
$3,989.99$4,788.99
Loading options…

Description

Specifications:
•Rated Line Pull 10,000 lbs. (4536 kg) single-line
•Motor 12V DC, 6HP Series Wound
•Electrical controls Contactor
•Remote Control Remote switch, 12’ (3.7m) lead
•Geartrain 3 Stage Spur Gear
•Gear ratio 134:1
•Clutch (freespooling) Sliding motor pinion gear
•Brake Automatic disc type

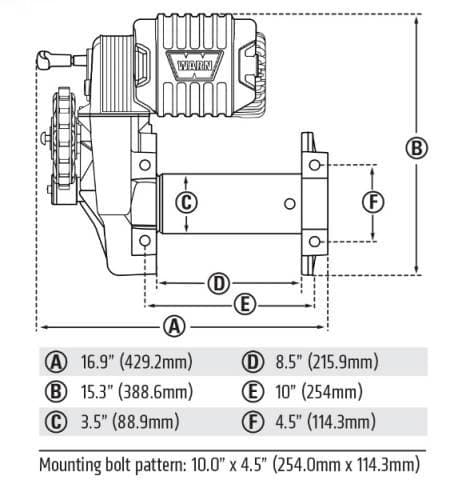

•Drum diameter/Length 3.5”/8.5” (9cm/22cm)
•Rope M8274-S: 3/8” x 150’ Spydura synthetic rope
•Fairlead M8274-S: Forged Hawse Fairlead
•Replacement Rope M8274-S: 3/8” x 150’ Spydura synthetic rope - replacement PN 102343
•Recommended Battery 650 CCA minimum for winching
•Battery leads 2 gauge, 72” (1.83m)
•Finish Powder coat with clear coat
•Weight M8274-S, M8274: 90lb (40.8kg)
•Warranty Limited lifetime (mechanical components); seven year (electrical components)
