HOME / PRODUCT / Warn Electric Winch, Zeon 8 - 8,000lb Winch

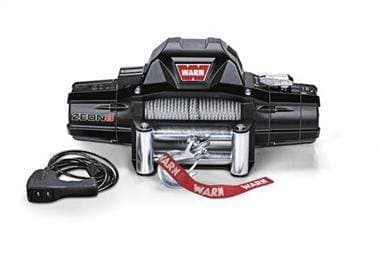

Warn Electric Winch, Zeon 8 - 8,000lb Winch

Warn Electric Winch, Zeon 8 - 8,000lb Winch

SKU: BCSQ88980

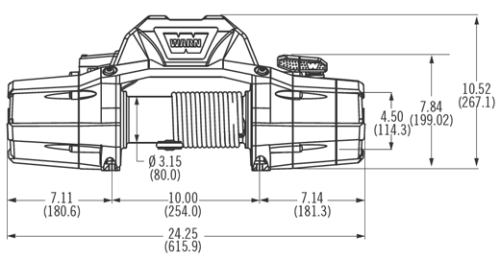

Don't let the good looks fool you. They've packed the ZEON 8 winch with all the performance features off-roaders said they needed most. From a heat-dissipating brake down to an incredibly smooth planetary gear train, this winch is ready to hit the trail. The 8,000 lb. pulling capacity, combined with a fast line speed make this winch the perfect choice for Jeep and SUV trail rigs. -8,000 lb. (3630 kg) single-line pulling capacity -100' of durable 5/16" galvanized steel wire rope -Satin-black powder-coated finish with stainless steel fasteners and clutch lever looks great and inhibits corrosion. Improved winch sealing to keep the elements out. -Large diameter winch drum reduces rope wear, is light weight, and has an integrated rope anchor for easy rope installation. -Backed by the WARN Limited Lifetime Warranty -Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks (Relocation kit required and sold separately*). *Control Pack Relocation Kit. Required to mount control box remotely from winch. PN 89970 (Short kit), PN 89960 (Long kit) Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
$1,099.99
Loading options…

Description

ZEON 8 SPECS/PART NUMBER
-Part number: 88980
-Rated line pull: 8000 lbs. (3630 kg) single-line
-Motor: 12V DC, series wound
-Electrical controls: Contactor
-Remote Control: Remote switch, 12' (3.7m) lead
-Geartrain: 3-stage planetary
-Gear ratio: 162:1
-Clutch (freespooling): Rotating ring gear
-Brake: Automatic mechanical cone
-Drum diameter/Length: 3.15"/9.0" (80mm/229mm)
-Weight (kit shipping): 94 lbs. (42 kg)
-Rope: 5/16" x 100' (8mm x 30.5m) steel
-Fairlead: Roller
-Recommended Battery: 650 CCA minimum for winching
-Battery leads: 25mm gauge, 72" (1.83m)
-Finish: Satin-black powder coat
-Warranty: Limited lifetime


12V DC PERFORMANCE SPECS
Line Pull (Lbs).... Line Speed (FT/min) .... Motor Current
0 .................. 35 .................... 63 amps
2000 ............... 17.2 .................. 167 amps
4000 ............... 11.7 .................. 255 amps
6000 ............... 8.5 ................... 335 amps
8000 ............... 6.2 ................... 413 amps

Pull strength by layer (layer/Lbs)
1: 8000
2: 6777
3: 5878
4: 5189
