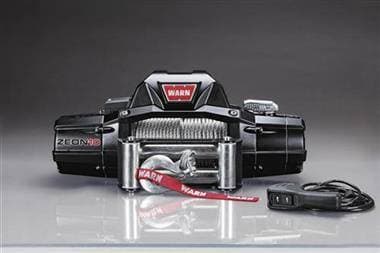

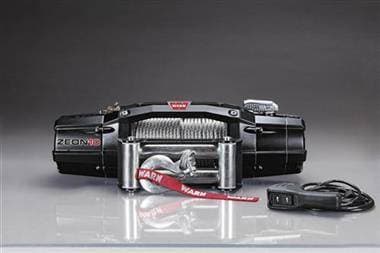

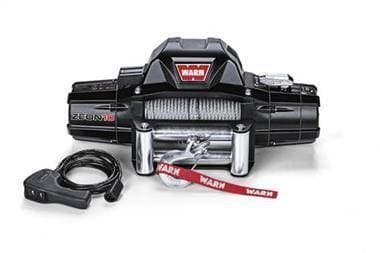

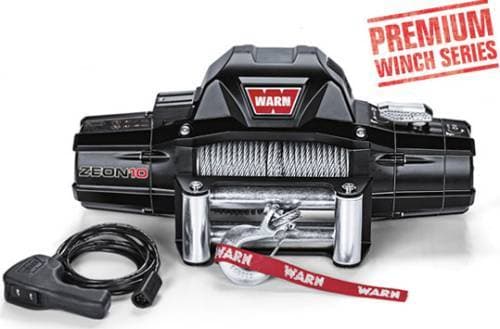

ZEON 10 SPECS/PART NUMBER
-Part number: 88990 (12V)
-Rated line pull: 10,000 lbs. (4536 kg) single-line
-Motor: series wound, 12V DC, 24V DC
-Electrical controls: Contactor
-Remote Control: Remote switch, 12' (3.7m) lead
-Geartrain: 3-stage planetary
-Gear ratio: 216:1
-Clutch (freespooling): Rotating ring gear
-Brake: Automatic mechanical cone

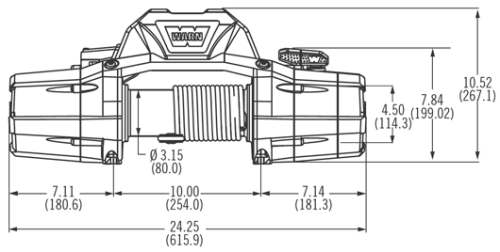

-Drum diameter/Length: 3.15"/9.0" (80mm/229mm)
-Weight (kit shipping): 98 lbs. (44 kg)
-Rope: 3/8" x 80' (9.52mm x 24.38m) steel
-Fairlead: Roller
-Recommended Battery: 650 CCA minimum for winching
-Battery leads: 2 gauge, 72" (1.83m)
-Finish: Satin-black powder coat
-Warranty: Limited lifetime
12V DC PERFORMANCE SPECS
Line Pull (Lbs) ..... Line Speed (FT/min) ..... Motor Current
0 ................... 33 ...................... 62 amps
2000 ................ 14.9 .................... 144 amps
4000 ................ 11.2 .................... 215 amps
6000 ................ 8.5 ..................... 380 amps
8000 ................ 6.5 ..................... 353 amps
10000 ............... 4.8 ..................... 409 amps
Pull strength by layer (layer/Lbs)
1: 10000
2: 8245
3: 7014
4: 6103
