Part Number: 68801
Motor: 12V 4.6 hp, Gen II, Series Wound
Electrical Control: Solenoid Control Pack
Remote control: Remote switch, ti, with LED indicator 12 ft (3.7m) lead
Geartrain: 3-stage planetary
Gear ratio: 315:1
Clutch (freespooling): Rotating ring gear
Brake: Automatic direct drive cone
Wire rope: 90 ft, 7/16 in diameter (27m, 11mm diam.)
Fairlead: Roller
Recommended battery: 650 CCA minimum for winching
Battery leads: 2 gauge, 72 ft (1.83m)
Finish: High-gloss powder coat over primer undercoating
Drum diameter/length: 3.5 in /8.2 in (9cm/21cm)
Weight: 138 lbs. (63 kgs.)

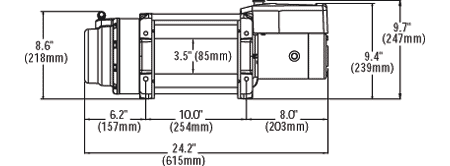

Winch Dimensions: 24.2" L. x 8.5" D. x 9.7" H.
(628mm L. x 216mm D. x 247mm H.)
Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
