Specifications:
CFM: 1.97 @ 0 PSI
12-Volt
Permanent Magnetic Motor
Duty Cycle: 25 min. @ 30 PSI
Max. Working Pressure: 120 PSI
Max. Amp Draw: 20-Amps
Ingress Protection Rating: IP53
Max. Ambient Temp: +158°F
Min. Ambient Temp: -4°F
Dimensions: 9.8″L x 3.2″W x 5.6″H
Net Weight: 4.75 lbs.
Power Cord Length: (P/N EVC88P) 10ft & (P/N EVC88P7) 6ft
Air Hose Length: 16 ft.
PN EVC88P: Inrush Current @ 0 PSI = 56
PN EVC88P7: Inrush Current @ 0 PSI = 56
PN EVC88P: dB @ 0 PSI = 80
PN EVC88P7:dB @ 0 PSI = 80
PLEASE NOTE:

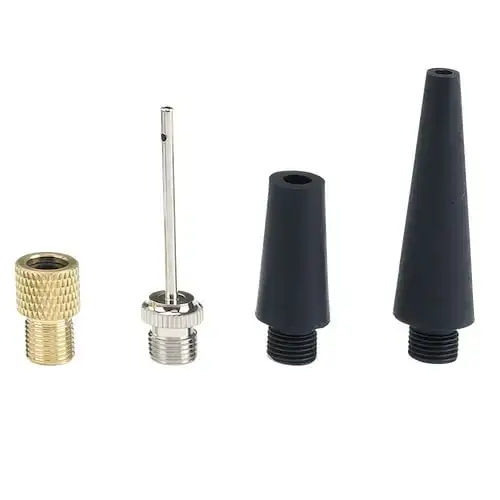

The 88P does not work with Presta bicycle valves, unless used with a Presta Valve Adaptor. The 88P does not work with the VIAIR Winterization Kit (P/N 90145).
Performance:
12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts
PSI CFM A BAR LMP A
0 1.97 14 0 56.0 14
10 1.82 15 1.0 49.0 15
20 1.62 16 2.0 41.0 17
30 1.45 17 3.0 36.0 17
40 1.32 17 4.0 31.0 18
50 1.18 18 5.0 26.0 17
60 1.05 18 6.0 21.0 16
70 0.94 18 7.0 17.0 15
80 0.83 17 8.0 14.0 14
90 0.70 16
100 0.63 16
110 0.54 15
120 0.45 14
Fill Rate:
EVC 88p Portable
26.5" Tire (205/65 R16) FILL RATE
27 to 35 PSI 31 sec. (± 05 sec.)
35 to 44 PSI 34 sec. (± 05 sec.)
30" Tire (225/68 R18) FILL RATE
27 to 35 PSI 40 sec. (± 05 sec.)
35 to 44 PSI 42 sec. (± 05 sec.)
32" (275/70 R17) FILL RATE
27 to 35 PSI 1 min 08 sec. (± 5 sec.)
35 to 44 PSI 1 min. 26 sec. (± 05 sec.)
