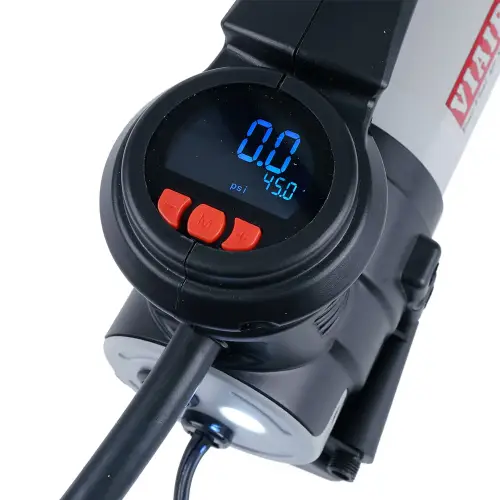

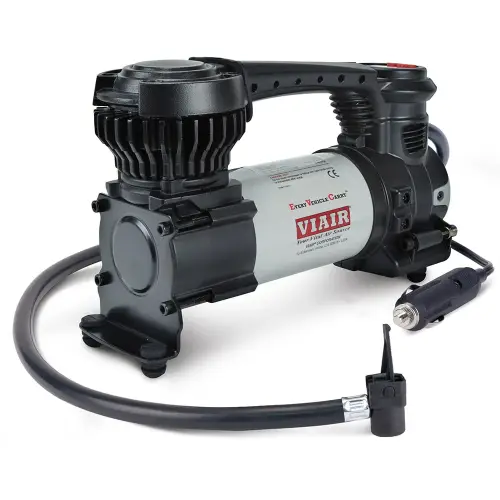

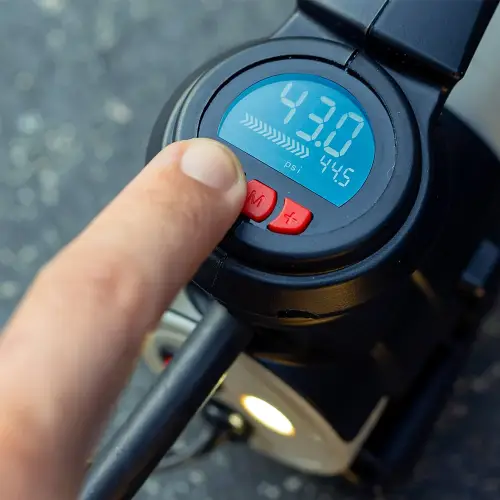

The best-seller 88P just got better! Introducing the Every Vehicle Carry™ 88P Digital Compressor. Featuring a digital gauge and preset pressure with automatic shutoff, tire inflation is easier and more accurate than ever!
Specifications:
•CFM: 1.77 @ 0 PSI
•12-Volt
•Permanent Magnetic Motor
•Duty Cycle: 20 min. @ 30 PSI
•Max. Working Pressure: 60 PSI
•Max. Amp/Watt Draw: 15A/180W
•Ingress Protection Rating: IP53
•Max. Ambient Temp: +158°F
•Min. Ambient Temp: -4°F

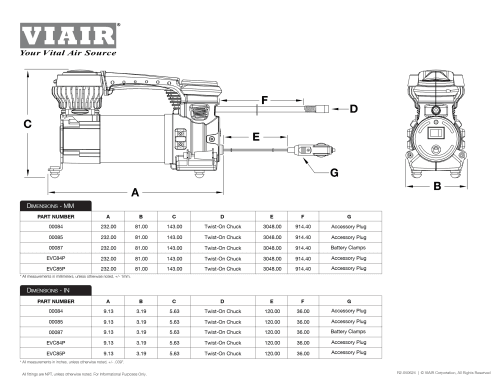

•Dimensions: 9.1″L x 3.1″W x 5.6″H
•Net Weight: 4.30 lbs.
•Power Cord Length: 10 ft.
•Air Hose Length: 3 ft.
•PN EVC84P: Inrush Current @ 0 PSI = 38
•PN EVC85P: Inrush Current @ 0 PSI = 38
•PN EVC84P: dB @ 0 PSI = 80
•PN EVC85P: dB @ 0 PSI = 80
PLEASE NOTE:

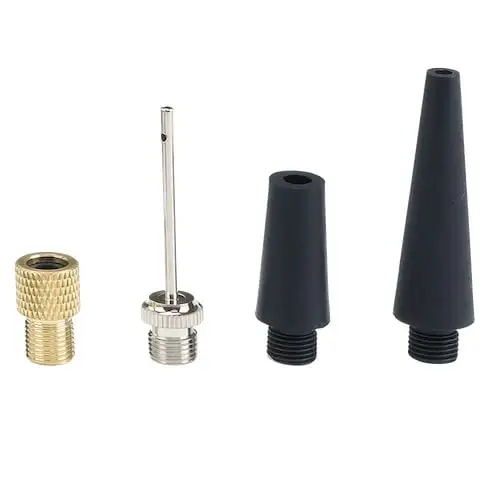

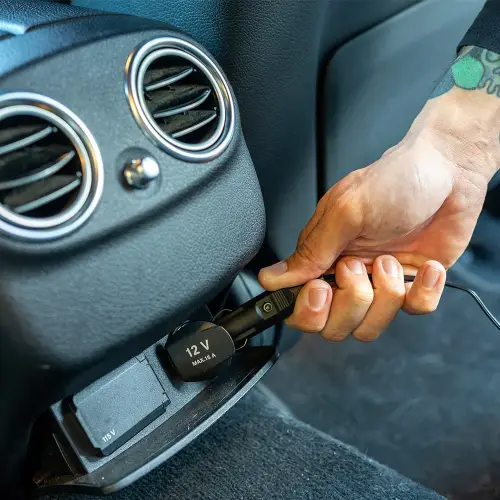

Always check your vehicle’s power port rating for maximum amperage before ordering. The EVC85P does not work with Presta bicycle valves, unless used with a Presta Valve Adaptor.The EVC85P does not work with the VIAIR Winterization Kit (P/N 90145).
Performance:
12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts
PSI CFM A BAR LPM A
0 1.77 10 0 50.0 10
10 1.64 11 1.0 44.0 11
20 1.44 12 2.0 36.0 13
30 1.27 13 3.0 30.0 13
40 1.13 13 4.0 25.0 13
50 1.02 13 5.0 21.0 12
60 0.86 13 6.0 16.0 11
70 0.75 12 7.0 12.7 10
80 0.66 12 8.0 9.0 9
90 0.54 11
100 0.45 10

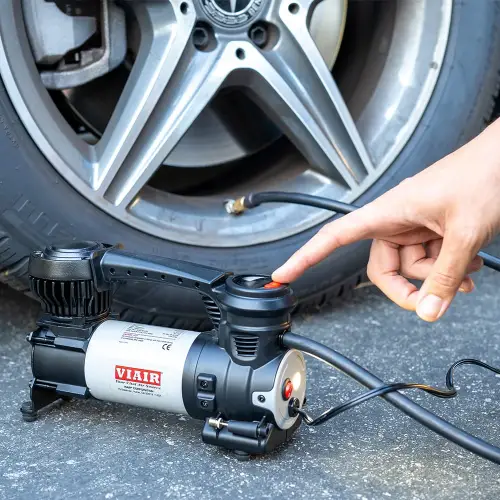

Fill Rates:
EVC85P Portable
26.5" Tire Fill Rate (205/65 R16) FILL RATE
27 to 35 PSI 39 sec. (± 05 sec.)
35 to 44 PSI 48 sec. (± 05 sec.)
30" Tire Fill Rate (225/60 R18) FILL RATE
27 to 35 PSI 47 sec. (± 05 sec.)
35 to 44 PSI 54 sec. (± 05 sec.)
