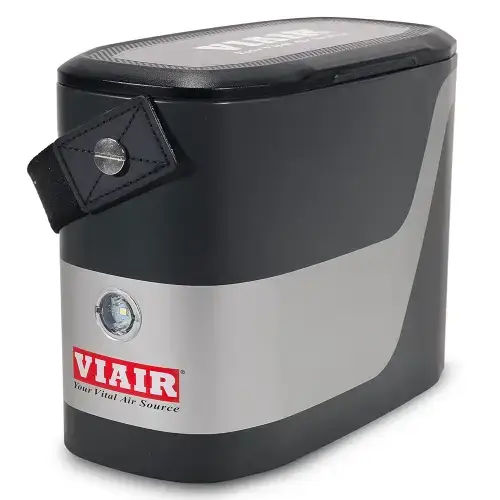

Specifications:
•CFM: 1.13 @ 0 PSI
•12-Volt
•Permanent Magnetic Motor
•Duty Cycle: 100% @ 50 PSI
•Max. Working Pressure: 100 PSI
•Max. Amp/Watt Draw: 10A/120W

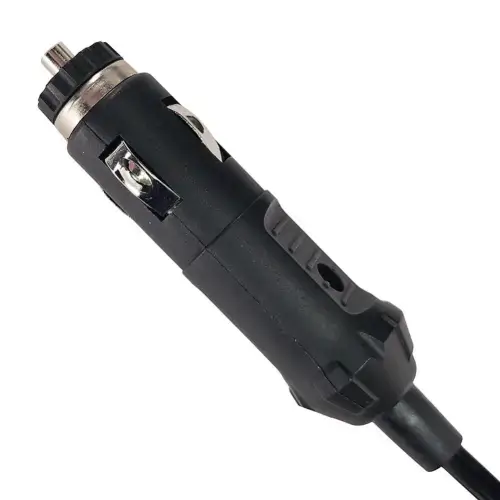

•Power Cord Length: 10 ft.

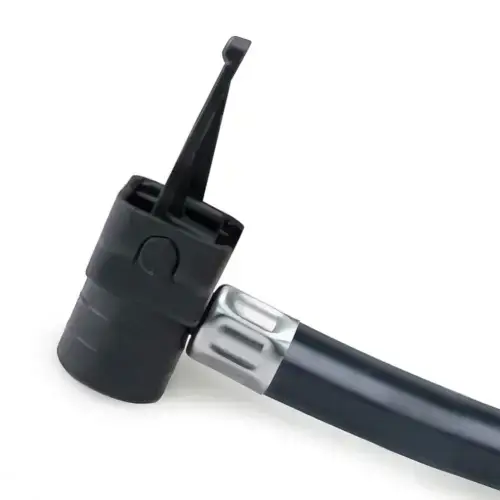

•Air Hose Length: 2 ft.
•Ingress Protection Rating: IP53
•Max. Ambient Temp: 158°F
•Min. Ambient Temp: -4°F
•Inrush Current @ 0 PSI = 25
•dB @ 0 PSI = 69
Performance:
12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts
PSI CFM A BAR LPM A
0 1.13 6 0 32.0 6
10 0.96 7 1.0 25.5 8
20 0.85 8 2.0 21.0 9
30 0.72 9 3.0 17.5 9
40 0.64 9 4.0 13.3 9
50 0.54 9 5.0 11.0 8
60 0.47 9 6.0 9.1 8
70 0.41 8 7.0 7.8 7
80 0.35 8
90 0.32 8
100 0.27 7

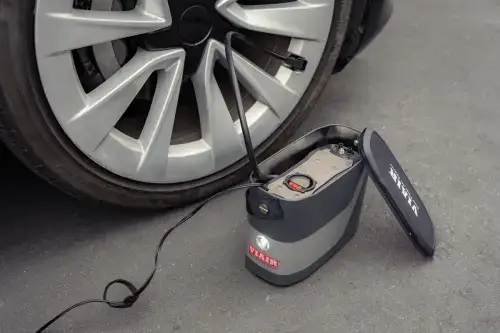

Fill Rates:
195/70R14 FILL RATE
27 to 35 PSI 1 min. 04 sec. (± 05 sec.)
35 to 44 PSI 1 min. 22 sec. (± 05 sec.)
205/65R16 FILL RATE
27 to 35 PSI 1 min. 07 sec. (± 05 sec.)
35 to 44 PSI 1 min. 29 sec. (± 05 sec.)
