Viair 20001 Ultra Duty Onboard Air System
SKU: BKTN20001

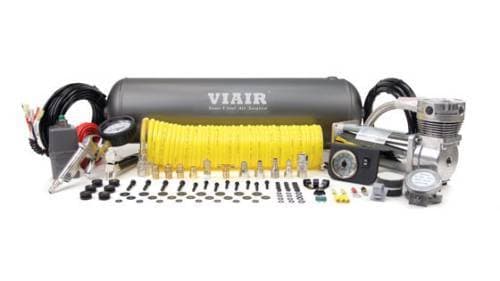

The ViAir 20001 medium duty air system is perfect for ultra duty applications like frequent tire-inflation, load-leveling, air tools, and air horns. This kit will fill 37 inch and larger tires no problem and provides a hefty two and a half gallons of air. This single part supplies you with everything to install an extremely reliable, and sophisticated onboard air system. The 20001 kit includes a large 2.5 gallon air tank, a constant-duty 480C air compressor, 30ft coil hose with tire inflation gun, a dash panel gauge with system control, and every little extra you may need.
Kit Includes:
2.5 Gallon 6 Port Air Tank
Viair 480c Air Compressor
Tire Inflation Gun
30 ft Coil Hose
1/4" Quick Connect Stud (M)
1/4" Quick Connect Coupler (F)
Dash Panel Gauge with ON/OFF Switch
165/200 PSI Pressure Switch
1/8" F to 1/4" M Reducer Bushing
3/8" F to 1/4" M Reducer Bushing
Safety Blow Off
Drain Cock
(3) 1/4" Compression Fittings
4 in Strip Continuous Grommet Material
20 Feet of 12ga Wire
Electrical Conenctions
Accessory Airline
Warranty 1 Year Limited Lifetime
$661.99$761.99
Loading options…
Description
Specifications:
20001 Air System
Refill Time: 1 min 23 sec
Empty Fill Time: 5 min 2 sec
Working Pressure: 200 PSI
Max Pressure: 200 PSI
2.5 Gallon 6 Port Air Tank
Volume: 2.5 Gallons (9.5 Liters)
Length: 23.5 in (596.9 mm)
Width: 6 in (152.4 mm)
Height: 7.5 in (190.5 mm)
Weight: 11.85 lbs (5.35 Kg)
Viair 480c Air Compressor
Voltage: 12 volts
Max Amperage: 19 amps
Max Duty Cycle: 100% @ 100 PSI
Max Working Pressure: 200 PSI
Length: 11.5 in (292.1 mm)
Width: 4.3 in (109.22 mm)
Height: 6.5 in (165.1 mm)
Weight: 11 lbs (4.99 Kg)
165/200 PSI Pressure Switch
Voltage: 12 volts
Max Amperage: 40 amps
On Pressure: 165 PSI
Off Pressure: 200 PSI
Tire Inflation Kit
Chuck Type: Inflation Gun
Max Pressure: 200 PSI
Hose Length: 30 ft (9.14 m)
