Viair 10009 X'treme Duty Onboard Air System
SKU: BKTN10009

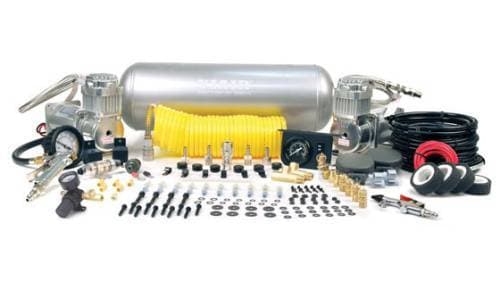

The ViAir 10009 is an extremely dependable, constant duty 2 gallon air system. This single part supplies you with everything to install an extremely reliable, and sophisticated onboard air system. With this system installed you'll be able to air up tires on the go, or even perform roadside repairs with air tools. The 10009 kit includes a 2 gallon air tank, two constant-duty 350C air compressors, 30 foot coil hose, tire inflation gun (w/200psi gauge), 0-200 PSI pressure regulator, blow gun and just about every extra you could imagine.
Kit Includes:
2 Gallon 6 Port Air Tank
(2) 350c Air Compressors
30ft Coil Hose with Quick Connect
Tire Inflation Gun with 200 PSI Gauge
0-150 PSI Pressure Regulator
Blow Gun
1/4" Quick Connect Coupler (F)
Dash Panel Gauge with ON/OFF Switch
110/150 PSI Pressure Switch
(2) 40 amp Relays
Inline Fuse Holder with Fuse
Safety Blow Off
Drain Cock
(2) 1/8" BSP to 1/4" NPT Fittings
(5) 1/4" Compression Fittings
4 in Strip of Continuous Grommet Material
20 Feet of 12ga Wire
1/4" M x 1/4" F x 1/8" F Tee Fitting
Warranty 1 Year Limited Lifetime
$804.99$925.99
Loading options…
Description
Specifications:
10009 Air System
Refill Time: 34 sec
Empty Fill Time: 2 min 47 sec
Working Pressure: 150 PSI
Max Pressure: 150 PSI
2 Gallon 6 Port Air Tank
Volume: 2 Gallons (7.6 Liters)
Length: 19 in (482.6 mm)
Width: 4 in (101.6 mm)
Height: 7 in (177.8 mm)
Weight: 8 lbs (3.63 Kg)
Viair 350c Dual Pack Air Compressors
Voltage: 12 volts
Max Amperage: 34 amps
Max Duty Cycle: 100% @ 100 PSI
Max Working Pressure: 150 PSI
Length (Each): 9 in (228.6 mm)
Width (Each): 4 in (101.6 mm)
Height (Each): 7 in (177.8 mm)
Weight (Each): 8 lbs (3.63 Kg)
110/150 PSI Pressure Switch
Voltage: 12 volts
Max Ameprage: 40 amps
On Pressure: 110 PSI
Off Pressure: 150 PSI
Tire Inflation Kit
Chuck Type: Inflation Gun
Max Pressure: 200 PSI
Hose Length: 30 ft (9.14 m)
