Viair 10008 Super Duty Onboard Air System
SKU: BKTN10008
The ViAir 10008 is a very fast 2 gallon air system. This is a performance air system designed to provide extremely fast fill times. This single part supplies you with everything to install an extremely reliable, and sophisticated onboard air system.
With this system installed you'll be able to air up tires on the go, or even perform roadside repairs with air tools.

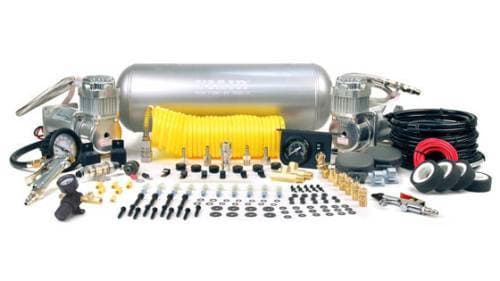

The 10008 kit includes a 2 gallon air tank, two fast-fill 325C air compressors, 30 foot coil hose, tire inflation gun, 0-200 PSI pressure regulator, blow gun and just about every extra you could imagine.
Kit Includes:
2 Gallon Air Tank
(2) 325c Air Compressor
30 ft Coil Hose with Quick Connect
Tire Inflation Gun with 200 PSI Gauge
0-150 PSI Pressure Regulator
Blow Gun
1/4" Quick Connect Coupler (F)
Dash Panel Gauge with ON/OFF Switch
110/150 PSI Pressure Switch
(2) 40 amps Relays
Inline Fuse Holder and Fuse
Safety Blow Off
Drain Cock
(2) 1/8" BSP to 1/4" NPT Fitting
(5) 1/4" Compression Fitting
4 in Strip of Continuous Grommet Material
20 Feet of 12ga Wire
1/4" M x 1/4" F x 1/8" F Tee Fitting
Detailed Instructions
$783.99$901.99
Loading options…
Description
Specifications:
10008 Air System
Refill Time: 24 sec
Empty Fill Time: 1 min 22 sec
Operating Pressure: 150 PSI
Max Pressure: 150 PSI
2 Gallon 6 Port Air Tank
Volume: 2 Gallons (7.6 Liters)
Length: 19 in (482.6 mm)
Width: 6 in (152.4 mm)
Height: 7.5 in (190.5 mm)
Weight: 9.645 lbs (4.37 Kg)
325c Dual Pack Air Compressors
Voltage: 12 volts
Max Amperage: 38 amps
Max Duty Cycle: 33% @ 100 PSI
Max Working Pressure: 150 PSI
Length (Each): 8 in (203.2 mm)
Width (Each): 4 in (101.6 mm)
Height (Each): 7.05 in (179.07 mm)
Weight (Each): 6.95 lbs (3.15 Kg)
110/150 PSI Pressure Switch
Voltage: 12 volts
Max Amperage: 40 amps
On Pressure: 110 PSI
Off Pressure: 150 PSI
Tire Inflation Kit
Chuck Type: Inflation Gun
Max Pressure: 200 PSI
Hose Length: 30 ft (9.14 m)
