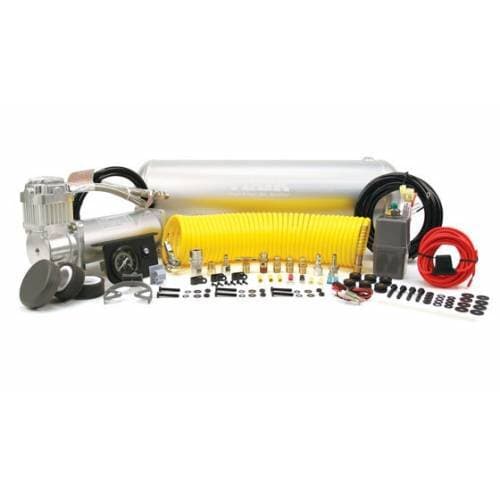

Viair 10007 Constant Duty Onboard Air System
SKU: BKTN10007
The ViAir 10007 is perfect for load leveling and tire filling. This kit will fill up to 37 inch tires no problem and provides a hefty two and a half gallons of air. This single part supplies you with everything to install an extremely reliable, and sophisticated onboard air system. The 10007 kit includes a large 2.5 gallon air tank, a constant duty ViAir 450C air compressor, 35 foot coil hose and just about every extra you could imagine.
Kit Includes:
2.5 Gallon 6 Port Air Tank
Viair 450c Air Compressor
35ft Coil Hose
1/4" Quick Connect Stud (M)
1/4" Quick Connect Coupler (F)
Dash Panel Gauge with ON/OFF Switch
110/150 PSI Pressure Switch with Built-In Relay
1/8" F to 1/4" M Reducer Bushing
Safety Blow Off
Drain Cock
(3) 1/4" Compression Fitting
4" Strip of Continuous Grommet Material
20 Feet of 12ga Wire with Inline Fuse Holder
Electrical Connections
Warranty 1 Year Limited Lifetime
$522.99$601.99
Loading options…
Description
Specifications:
10007 Air System
Refill Time: 59 sec
Empty Fill Time: 3 min 2 sec
Operating Pressure: 150 PSI
Max Pressure: 150 PSI
2.5 Gallon 6 Port Air Tank
Volume: 2.5 Gallons (9.5 Liters)
Length: 23.5 in (596.9 mm)
Width: 6 in (152.4 mm)
Height: 7.5 in (190.5 mm)
Weight: 11.925 lbs (5.41 Kg)
Viair 450c Air Compressor
Voltage: 12 volts
Max Amperage: 19 amps
Max Duty Cycle: 100% @ 100 PSI
Max Working Pressure: 150 PSI
Length: 11.25 in (285.75 mm)
Width: 4 in (101.6 mm)
Height: 7 in (177.8 mm)
Weight: 9.75 lbs (4.42 Kg)
110/150 PSI Pressure Switch
Voltage: 12 volts
Max Amperage: 40 amps
On Pressure: 110 PSI
Off Pressure: 150 PSI
Tire Inflation Kit
Chuck Type: Chuck
Max Pressure: 200 PSI
Hose Length: 35 ft (10.67 m)
