Viair 10002 Quarter Duty Onboard Air System
SKU: BKTN10002

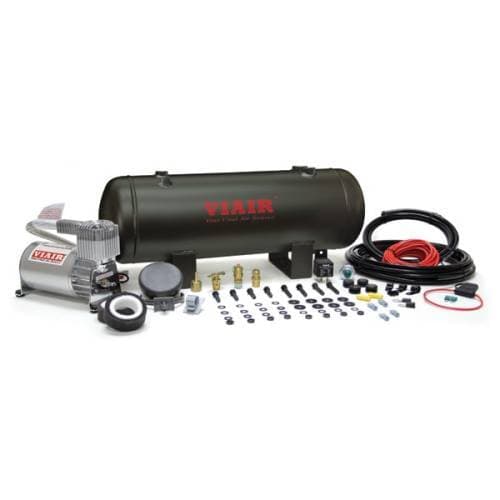

The Viair 10002 medium duty air system is perfect for medium duty applications like air horns, load-leveling, and occasional tire filling. This kit will fill up to 31 inch tires no problem and provides a hefty two and a half gallons of air. This single part supplies you with everything to install an extremely reliable, and sophisticated onboard air system. The 10002 kit includes a large 2.0 gallon air tank, a quick-refill 275C air compressor, and a dash panel gauge with system control.
Kit Includes:
-2 Gallon Viair Air Tank
-275C model 120psi Viair Air Compressor
-1/4in Air Line
-1/4in NPT Quick Connect Coupler (M)
-Pressure Switch(90 PSI on, 120 PSI off)
-40A Relay
-Reducer (1/8 in NPT F to 1/4 in NPT M)
-1/4in NPT 145 PSI Safety Valve
-1/4in Drain Cock
-1/4in NPT Compression Fittings
-4in Strip of Continuous Grommet Material
-20ft 12 Gauge Wire with Inline Fuse Holder
Warranty 1 Year Limited Lifetime
$315.99$363.99
Loading options…
Description
Specifications:
10002 Air System
Empty Fill Time: 2 minutes 53 seconds
Average Fill Time: 44 seconds
Operating Pressure: 120 PSI
Max Working Pressure: 150 PSI
2 Gallon 6 Port Air Tank
Volume: 2 Gallons (7.6 Liters)
Length: 19 in (482.6 mm)
Width: 6 in (152.4 mm)
Height: 7.5 in (190.5 mm)
Weight: 9.645 lbs (4.37 Kg)
Viair 275C Air Compressor
Voltage: 12 volts
Max Amperage: 18 amps
Max Duty Cycle: 25% @ 100 PSI
Mac Operating Pressure: 150 PSI
Length: 6.5 in (165.1 mm)
Width: 3.5 in (88.9 mm)
Height: 4.5 in (114.3 mm)
Weight: 5.1 lbs (2.31 mm)
Viair 110/145 PSI Pressure Switch
Voltage: 12 volts
Max Amperage: 40 amps
On Pressure: 110 PSI
Off Pressure: 145 PSI
