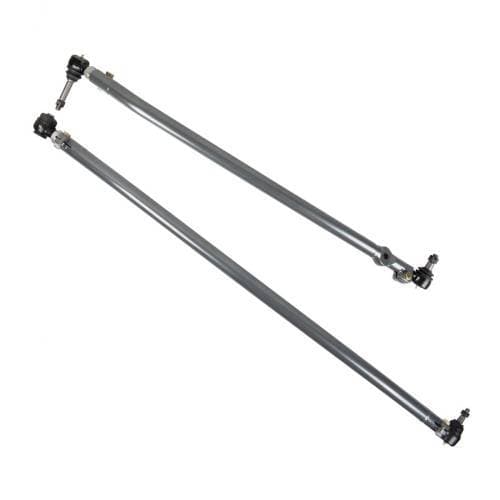

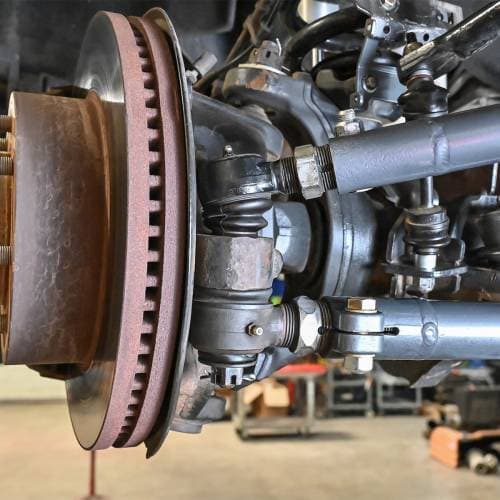

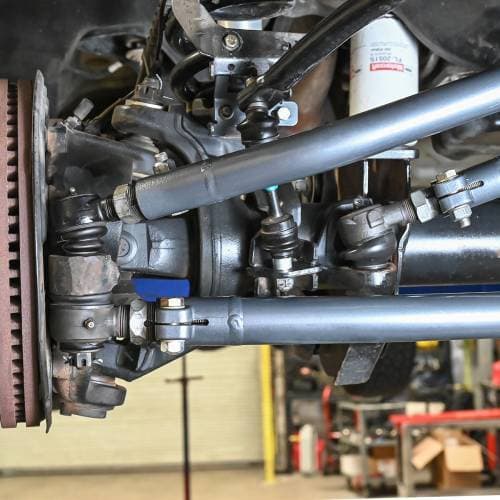

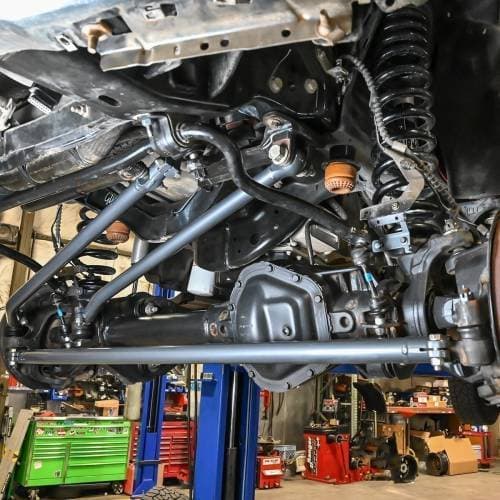

Synergy 2005+ Ford Super Duty F-250 / F-350 Heavy Duty Steering Kit was designed with the end user in mind. The tie rod and drag link will bolt directly into the stock location for an immediate upgrade in steering feel and strength. There are no wheel size requirements; factory wheels and tires are 100% compatible! The tie rod is made from heat treated 1.75" 4130 chromoly for maximum strength. The drag link is made from 1.5" 1026 DOM USA made steel tubing and is machined to retain the stock steering stabilizer. You will not find a stronger, better performing steering kit on the market!
Features:
- Drag link and tie rod bolts into the factory mounts with no additional wheel requirements
- Tie rod is over 40% stronger than the stock tie rod

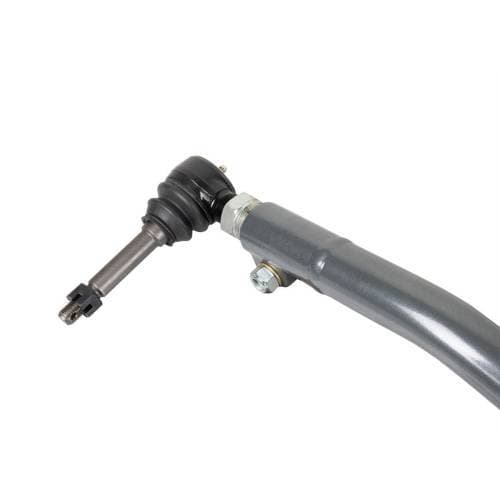

- Includes Synergy HD metal on metal tie rod ends with oversized 1 inch shank
- Single plane tie rod end used on the axle side to prevent unwanted drag link flop

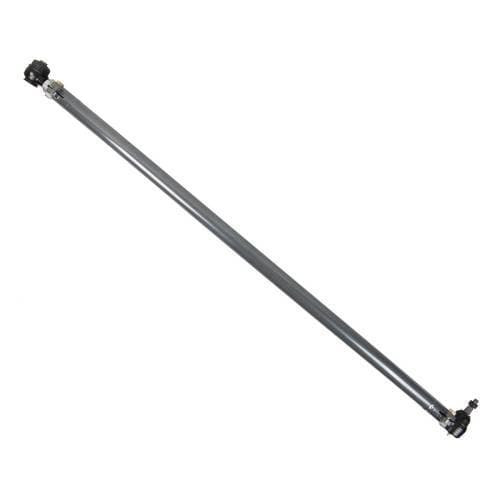

- Tie rod is CNC formed from 1.75 inch x .188 wall 4130 chromoly tubing and heat treated after bending

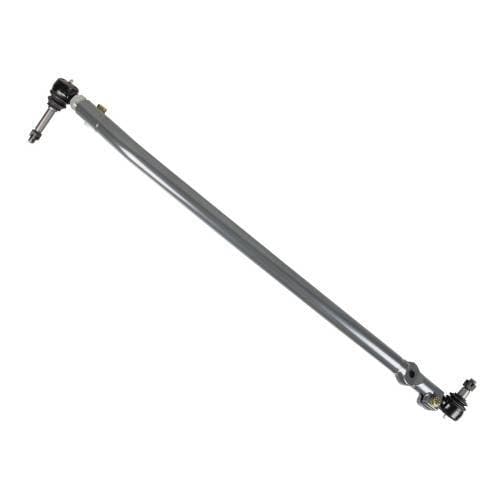

- Drag link is CNC formed from 1.50 inch x .250 wall 1026 DOM tubing
- Abrasion-resistant powder coat finish for maximum durability and corrosion resistance

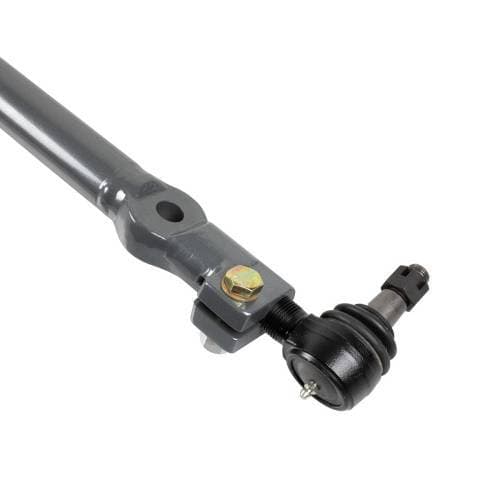

- Synergy double adjuster sleeve allows adjustment of drag link and tie rod length without removing it from the vehicle

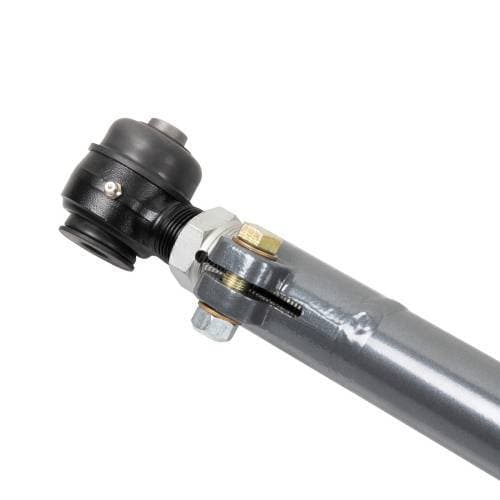

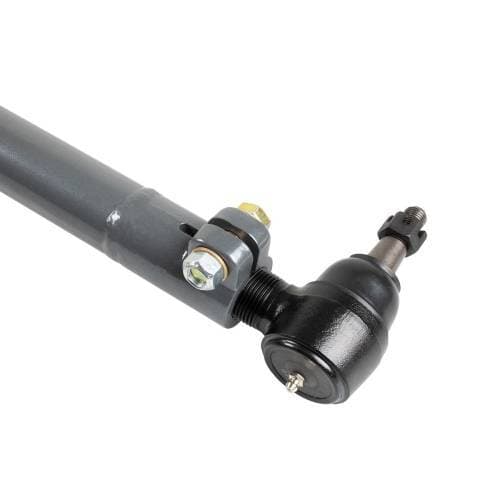

- Both ends of the bar use pinch bolts instead of jam nuts to maximize clamping force and make adjustments easier
- 100% bolt-on components assures an easy, trouble free installation with the use of basic hand tools
Min/Max Length:
Measured in a straight line from center of tie rod end to center of tie rod end
- Drag Link:
- Min collapsed length: 42.625"
- Max extended length: 45"
- Tie Rod:
- Min collapsed length: 59.75"
- Max extended length: 62.5"
Notes:
- Compatible on vehicles with up to 3" of ride height with stock pitman arm & track bar bracket. Compatible on vehicles with 4"+ lift with drop pitman arm and track bar drop bracket.
- Synergy High Performance Grease recommended (4119) to be used with all Tie Rod Ends
- Synergy Premium Copper Infused Anti-Seize (4118) to be used with all threaded components
