Includes PreInstalled Bearings
You get the complete package with SuperATV +4 extended trailing arms. Each kit includes 10 preinstalled bearings giving you a hassle-free, at home installation and no need to pay extra to have your old bearings exchanged. We give you 8 swing arm pivot bearings and 2 wheel bearings, a $380 value preinstalled free for you!?
To ensure we deliver a product that exceeds your expectations, SuperATV's extended trailing arms are carefully crafted in state of the art CAD software, TIG welded and finished with a high-quality powder coat to show off your ride. Backed by a Lifetime Warranty, these arms designed to withstand whatever abuse you can put them through.
Better with Rhino Axles
Rhino and Rhino 2.0 axles are a perfect companion for Commander 4” Rear Trailing Arms. They have ultra-high 40°+ articulation so they can handle the extra length and have the strength to match. Rhino and Rhino 2.0 axles are the only axles that have been fully tested with these trailing arms and won’t bind or break at full extension. Get the best high-articulation axle out there with Rhino and Rhino 2.0 axles.
The Commander rear trailing arms are designed to be used with Rhino Brand Axles.
Suspension Setup
•High Clearance Forward Offset A Arms w/ Extended Trailing Arms **Max Tire Size 32"**
•2.5" Lift Kit & High Clearance Forward Offset A Arms w/ Extended Trailing Arms **Max Tire Sizes 33"**
Suspension Notes
•12" or smaller wheels require?1" Wheel Spacers?in the rear of the machine.
•The Rear Trailing Arms will NOT work with Air Shocks.
NOTE: Requires Rhino or Rhino 2.0 axles.

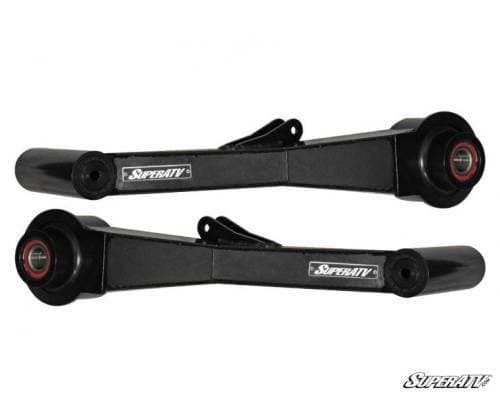

Features:
•Extends wheelbase by 4 inches
•Run up to 32" rear tires with no lift!?
•Compatible with lift kits

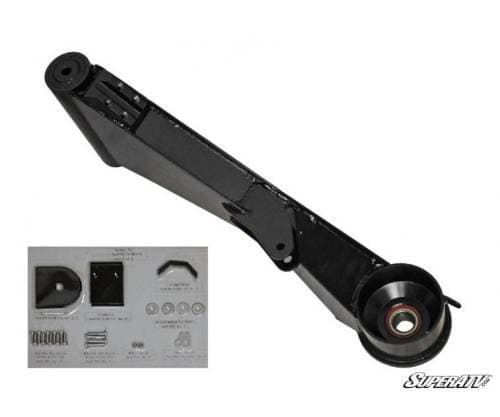

•Includes 10 preinstalled bearings
•Maintains factory alignment
•Reuses factory sway bar
•UV-resistant gloss black powder coat finish
•Backed by a Lifetime Warranty!
Fitment:
Can-Am Commander 800 : 2011-2020
Can-Am Commander 1000 : 2011-2020
NOTE:
•Does NOT fit MAX models
•12" or smaller wheels require 1" Wheel Spacers in the rear of the machine
•Does NOT work with Air Shocks
•Requires Rhino or Rhino 2.0 axles
