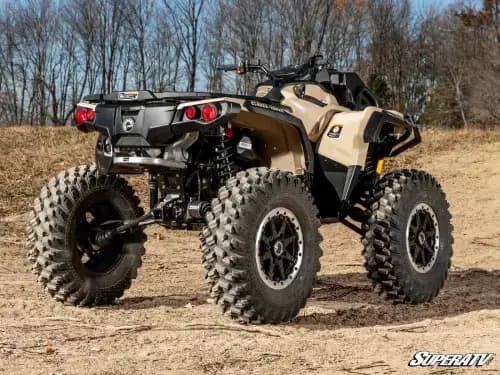

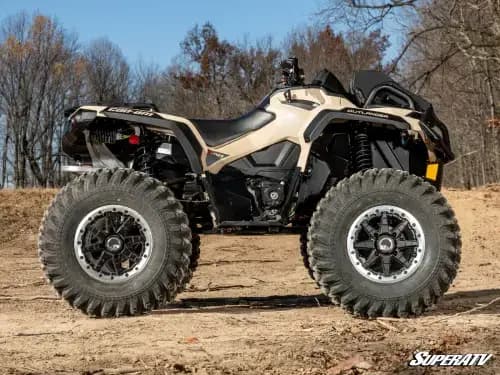

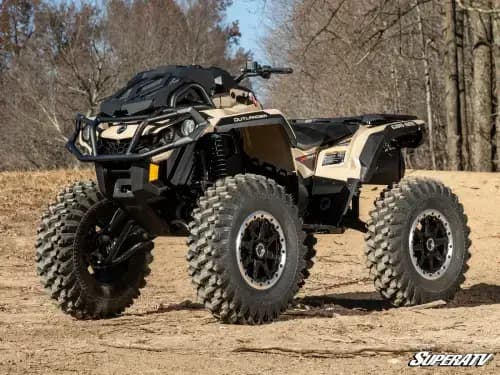

Do More with Tons of Clearance

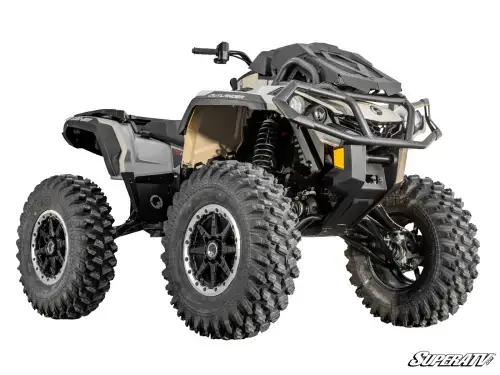

Unleash the full potential of your Can-Am Outlander with SuperATV's 5" lift. It gives you a 5.5" longer wheelbase and 5” of extra ground clearance so you can fit up to 34" tires when combined with SuperATV footwells. You’ll be bigger, better, and more badass on every ride.
All-New Beefed-Up Suspension

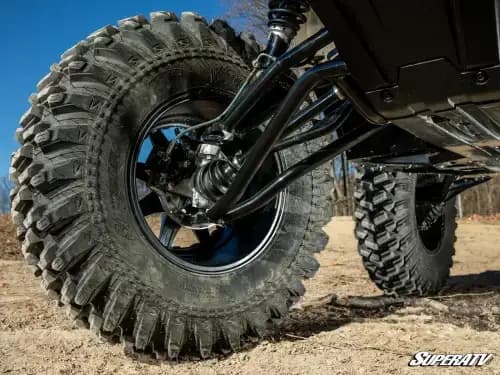

A big lift needs to be tough. The A-arms are made from 1.25" chromoly steel tubing and the trailing arms are made from 1.5" chromoly steel tubing to make sure it can handle anything. Hit the throttle and go hard. This lift is for riding, not just for looking pretty.

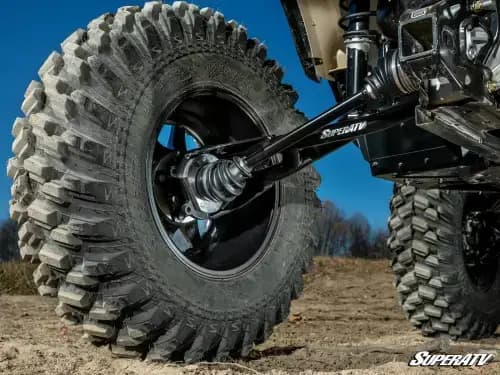

Comes with Rhino 2.0 Axles and Heavy-Duty Tie Rods
This lift kit comes with all the tough components you need, like heavy-duty, gusseted, Z-bend tie rods and four Rhino 2.0 Axles. These axles are specifically designed for high articulation use and heavy machines with larger CVs and shafts. You can go nuts without worrying about them breaking down.
Let SuperATV Do the Work—Preassembly Available!
Want to spend more time on the trails and less time in the garage? Purchase a set of SuperATV ball joints with your A-arms and we’ll install them for you for free! We save you money and time so you can get back to doing what you love.
NOTE: You must re-use your stock ball joints if you don’t select a pre-installed ball joint at checkout.
Heavy-Duty Ball Joints
Our heavy-duty ball joints are designed with ultimate performance and convenience in mind. Whether you’re doing flips or chasing hills, our proprietary blend of hardened 4340 VAR steel and zinc plating means this ball joint can take it. Our heavy-duty ball joints also come with easily-accessible grease zerks and an adjustable design. Extensive lab and field testing shows that our heavy-duty ball joints can withstand double the pressure of an OEM ball joint!
Super-Duty 300M Ball Joints
We took the strongest ball joint material on the market—300M grade steel—and combined it with our superior design engineering to make the strongest ball joint on the market. It comes with an easily accessible grease zerk and an adjustable steel-on-steel design, making it easy to keep your ball joints maintained and flexible. At 2.25x stronger than stock, you won’t find a better ball joint.
Keller Ball Joints
Keller Ball Joints use a two-piece design that eliminates the need for a snap ring. They thread onto your A-arms like a nut and bolt, which makes these ball joints virtually impossible to pull out. The high-quality chromoly steel stud combined with an advanced tool-steel body makes them perfect for bigger machines, bigger tires, and bigger rides. And since they’re greaseable and rebuildable, you can keep them running perfectly.
FEATURES:
•Run up to 32” tires
•Run up to 34” tires with SuperATV footwells

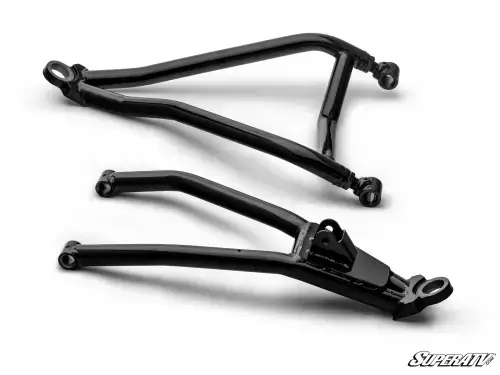

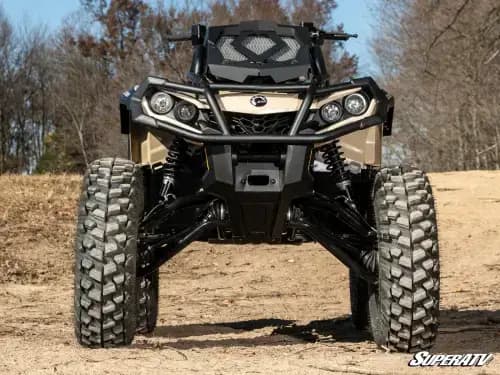

•Front A-arms
•1.25" thick DOM tubing
•1.5" forward offset high-clearance
•Heavy-duty Z-bend tie rods

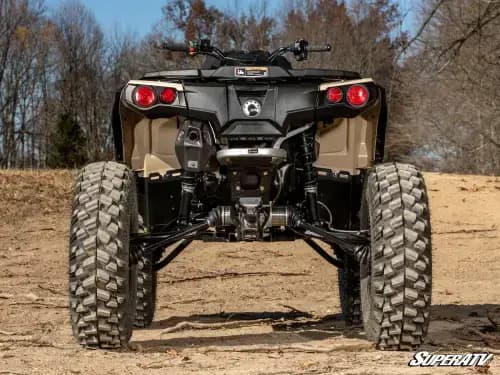

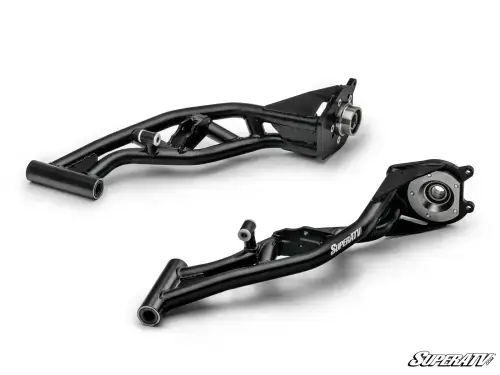

•Rear trailing arms
•74" rear offset for a smoother ride
•1.5" DOM tubing for extreme strength
•Extended trailing arms include all bearings
•(4) Rhino 2.0 Axles, extended length
•5" increased track width

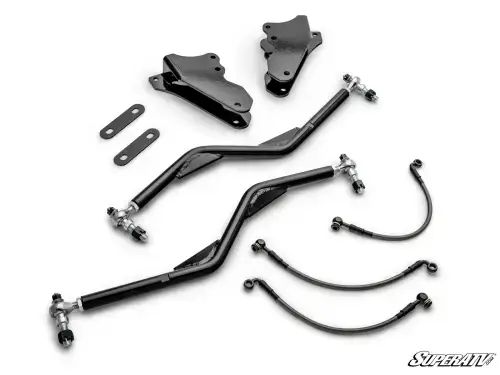

Kit Includes:
•Front high-clearance 1.5” offset A-arms (chromoly)
•Rear 4” offset trailing arms (chromoly)
•(4) Rhino 2.0 Axles
•Heavy duty Z-bend tie rod kit
•Extended brake lines
•All hardware and installation instructions
FITMENT:
Can-Am Outlander 570 : 2019+
Can-Am Outlander 650 : 2019+
Can-Am Outlander 850 : 2019+
Can-Am Outlander 1000 : 2019+
Can-Am Outlander Max 570 : 2019+
Can-Am Outlander Max 650 : 2019+
Can-Am Outlander Max 850 : 2019+
Can-Am Outlander Max 1000 : 2019+
WARNING: This product can impact machine operation. Customer and/or user is responsible for ensuring that this product is compatible with their machine as currently configured, properly installed, and understands any impact this product has or might have on the machine's operation.
