Tackle Any Terrain
A gear reduction makes a big difference when it comes to tackling certain terrains. For faster speeds and solid torque, choose a 15% gear reduction. If you’re running larger tires and hitting rough trails, a 30% gear reduction would be your best bet.
Protect Your Kawasaki Ridge’s Drivetrain

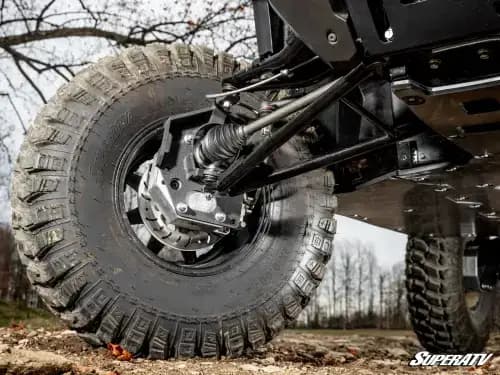

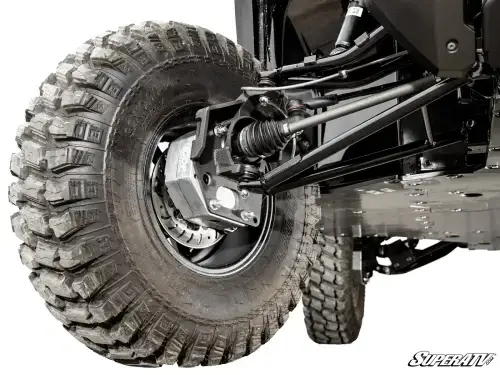

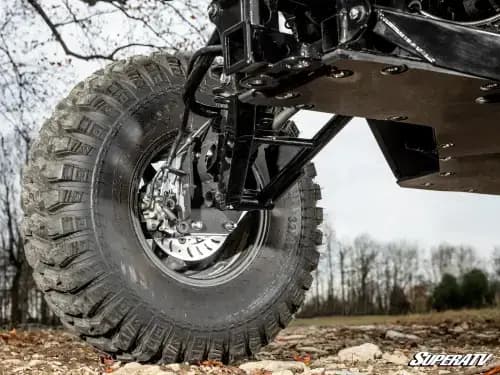

GDP Portals protect your drivetrain by putting the gear reduction in the wheel hub instead of the transmission. It keeps your axles, prop shaft, differential, and transmission safe by putting less strain on them. You’re getting ultimate power without the worry of causing any damage.
Ultimate Strength
We made sure that our GDP Portal Gear Lift would be as strong as your Kawasaki Ridge. They come in a cast or billet aluminum housing. Throw in our backing plates that are made of advanced steel alloy and you’re getting the ultimate portals.
•Our housings are reinforced for gear retention and optimized for oil flow
•Advanced steel alloy backing plates are stronger than chromoly
•Enhance with Portal Blood—gear oil formulated for GDP Portals
•There are no gimmicks and no vents because vents do more harm than good—we know because we tested them
Advanced Gaskets, Seals, and Bearings
Our portals use:
•Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
•A sealed input gear and double-lipped output seal
•100% sealing coverage throughout so you can forget about oil leaks
•Double-angular contact output bearings to prevent premature wear
•Roller idler and drive bearings to maintain perfect gear meshing
The Best Customer Service in the Industry
Choosing portals that meet your needs can be stressful. It might be hard to determine which gear reduction would fit best. Our dedicated customer service team is available to help you make that decision. Give us a call and we can set you up with the right portals.
4” Portal Gear Lift Includes:
•(4) Assembled portal hub boxes complete w/ 9310 gears, seals, output shaft, gaskets, and thrust bearings
•(4) Universal hubs and precision-ground stainless steel slotted rotors w/ lugs
•(4) Specialized steel alloy backing plates
•(4) Steel caliper mounting plates
•(4) Shims
•(8) A-arm bushings
•(4) Steel sleeves
•(2) Parking brake brackets
•(2) Drive gear spacers
•Extended brake lines with parking brake and brake cable brackets
•All required hardware including recessed castle nut socket
Features:
•Available with billet or cast aluminum housing
•Cool, quiet, precision-ground gears made from 9310 alloy billet steel
•1.5 in. diameter 4340 hardened steel drive shaft
•Housings use advanced gaskets or O-rings that don’t let anything through
•Universal hub fits all major bolt patterns
•Gear reduction reduces stress on your drivetrain
•Lighter than the competition
Fitment:
Kawasaki Ridge HVAC : 2024+
Kawasaki Ridge Limited : 2024+
Kawasaki Ridge Limited HVAC : 2024+
Kawasaki Ridge Ranch Edition : 2024+
Kawasaki Ridge XR HVAC : 2024+
Wheel Requirements:
•14” or larger wheel required
•Cannot exceed 5” backspacing
•Not compatible with dual beadlock wheels
