Wire & Gland Design

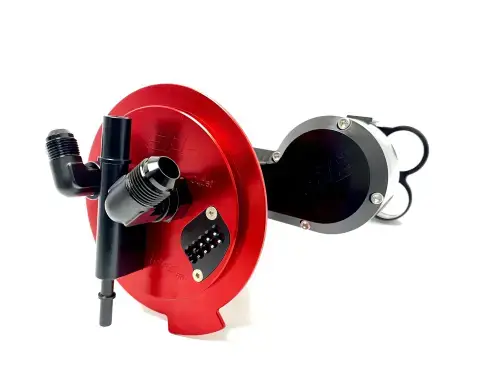

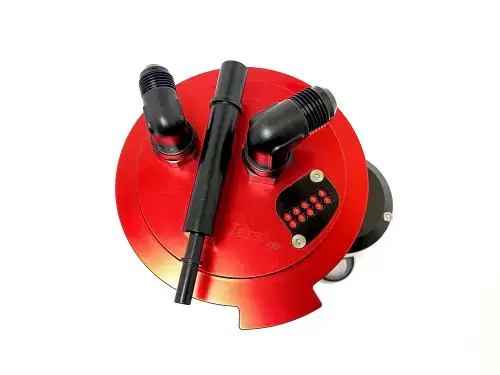

Wiring passes through a patented gland seal that allows wires to be added and removed with ease. The gland form fits the wire and compresses when the top flange is bolted down, unlike bulkhead pass through fittings which are bulky, not serviceable and hard to fit. Where hermetic seals don't allow you to service the wire and or add pumps later on the gland seal gives the customer the best of both worlds a great seal and serviceability.

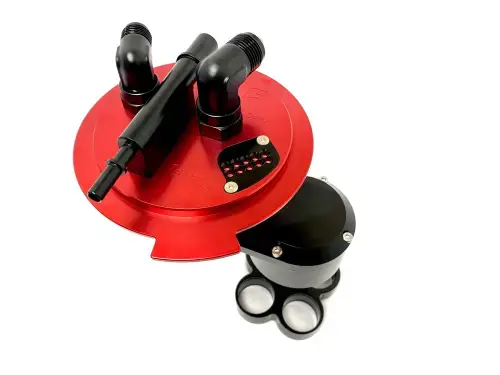

Billet Design

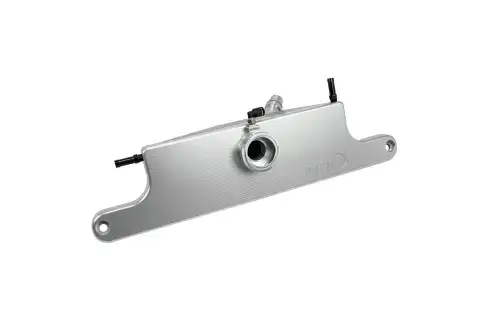

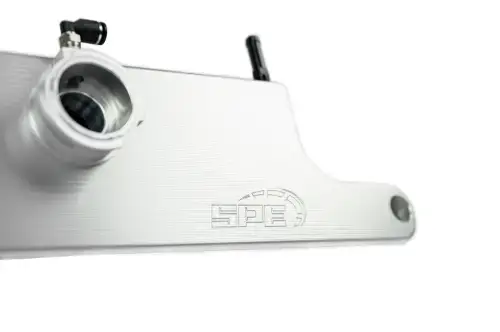

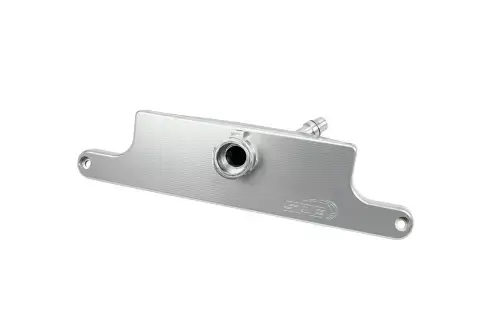

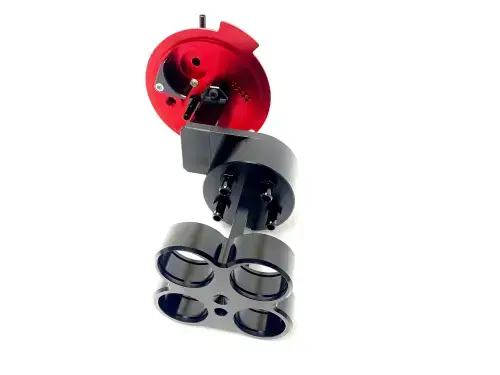

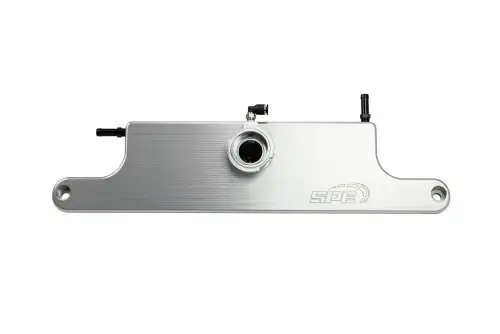

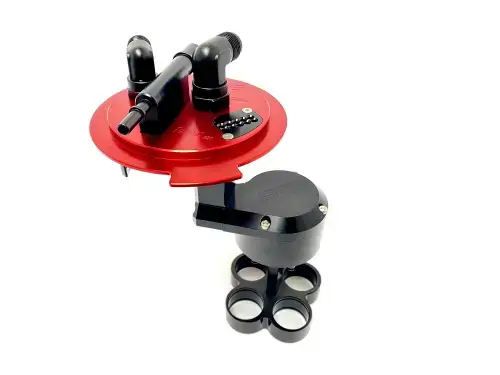

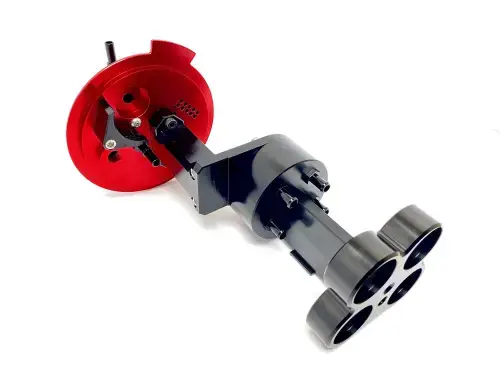

The Tetrad is completely billet with no brackets or hoses. The fuel pumps are held by an o-ring isolated in a billet housing which dampens noise and allows for easy adjustment. The F150 Tetrad also includes all of the factory evap connections including internal and external to the tank along with the roll over valve. The Tetrad is fully anodized to resist corrosion from E85 and other corrosive fuels.
Features:
•Supports 2400+HP on E85
•Holds up to 4 pumps = 39mm diameter pumps including 255,340,450,470,525 etc.
•Drops in to factory 15+ tanks
•-10AN Outlet
•-8AN Return
•Patented gland seal for wire pass through
•Uses factory sending unit
•Includes all Factory evap connections and roll over valve
Fitment:
2015-2021 Ford F150 5.0L
