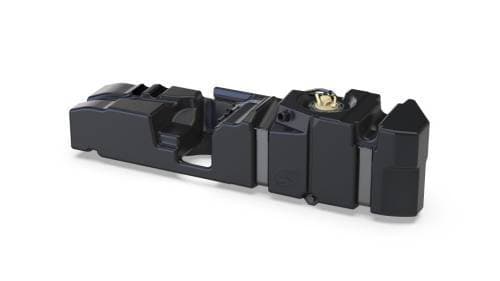

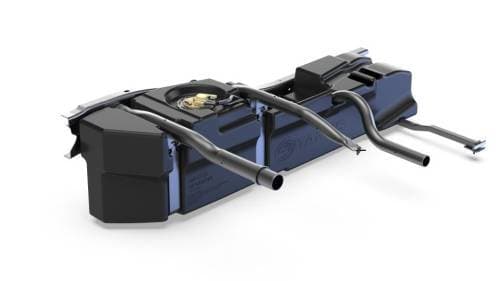

S&B Replacement Fuel Tank, Chevy/GMC (2001-04) 6.6L LB7 Duramax, Crew Cab Short Bed (62 Gallon)

Looking to run a sump with this tank? Well, S&B is way ahead of you by integrating a sump right into the tank. You heard right, there's no need to drill a big hole in the bottom of your new tank. Just remove the aluminum plug, drill and tap a 5/8" hole and you're ready to plumb right into your fuel system using the supplied fittings that follow the channel in the tank. Sticking with an easy to install theme, your factory sending unit requires no modification for installation, just drop it in following factory procedures. Both the vent and rollover vent are made from brass as well as the transfer pump fitting which gives you the ability to draw fuel directly from the tank instead of putting an additional fuel tank in the bed. If your factory fuel tank came equipped with a skid plate, it may be reinstalled on the bottom of the new S&B tank! Backed by S&B's limited lifetime warranty.

FEATURES:
•Compatible with gooseneck and 5th wheel Yes
•Compatible with oe skid plate No
•Dimensions 79.25" X 17.74" X 20.82"
•Drain Yes
•Embedded fitting thread size 1/2" NPT
•Ground clearance compare to oe tank 5" lower
•Sending unit S&B
•Straps included Yes
•Sump Yes

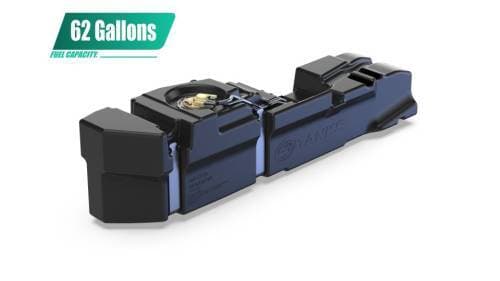

•S&B Capacity (Approximate) 62 Gallons
•Tank type Midship
•Transfer pump ready Yes
•Weight dry 62lbs

Fitment:
2001-2004 Chevrolet Silverado 2500 6.6L, Diesel, LB7
2001-2004 Chevrolet Silverado 3500 6.6L, Diesel, LB7
2001-2004 GMC Sierra 2500 6.6L, Diesel, LB7
2001-2004 GMC Sierra 3500 6.6L, Diesel, LB7


Note:
Fits Crew Cab, Short Bed models only.
