***Fitment Notes:
• Does NOT work on models equipped with Tremor package.
• Minor trimming required.
• Disassembly of struts required.
• Est. Install Time 5-6 hours.
Transform the look of your truck with Rough Country’s 3.5in Ford Ranger Suspension Lift! This all-inclusive kit features everything you need to give your vehicle aggressive good looks and enough ride height to run larger wheels and tires.
This 3.5in kit lifts and levels your vehicle from front to rear, giving this popular mid-size platform a much needed boost and a whole new look.
Each kit features a set of high-quality, forged aluminum upper control arms and differential drop brackets that have been engineered to retain the optimal angle after lifting. By preserving those angles, you get an aggressive, bold stance with plenty of potential for off-road action while still retaining the smooth factory ride quality and handling. Includes a Lifetime Replacement Warranty.
Premium N3 Shock Info:
• 10-Stage Variable Valving
• High Pressure Nitrogen Charged
• 35mm Piston
• Chromed Hardened 18mm Piston Rod
• 54mm Shock Body to dissipate heat faster
• 36kN Tensile Strength
• Spring Loaded Piston Rod Seal
• Military Spec. Fluid Rated To –40° C
• Rubber bushings for better absorption
• Metallic Silver Paint
• 3-year Manufacturer's Warranty

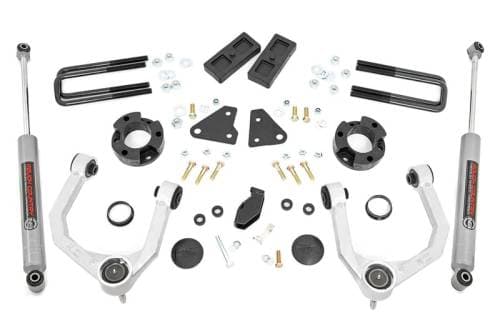

What's Included:
• Front
-Upper Control Arms
-Strut Spacers
-Differential Drop Plates
-N3 Premium Shocks
• Rear:
Rear Blocks
-U-bolts and Hardware
Known Wheel Tire Fitment:
285/55R20 mounted on 20x9 (6x5.5) +30 Offset
