Rock Krawler Suspension System, Jeep (2007-18) JK 4 Door, 4.5" Factor X2 Long-Arm System (w/ 3 Link Front & Rear) 2.25" RRD Shocks

The Rock Krawler Suspension JKU Wrangler 4.5 inch X - Factor X2 Long-Arm System is the ultimate in compromise between daily driver/hard core off-roader. The X - Factor systems combine the benefits of a full high clearance independent 3 link front suspension with a high clearance independent 3 link rear suspension. This is where conventional on road handling meets bad ass off-road ability. Up Front we have our proven 3 - link geometry with larger than factory hardware, a double adjustable front upper arm and wider than factory mounting width at the axle. This makes for an incredibly strong setup that is fit for the highways of America or any trail you may traverse all while providing maximum articulation at peak performance. The rear system uses our tried and true independent 3 link conversion with X2 rear suspension geometry with enhanced rear instant center(s) and rear roll center(s). The new high clearance axle mounts provide 3.5” of ground clearance under the rear axle as compared to stock. The rear upper shock relocation brackets ensure you do not lose any shock or suspension travel. The combination of a full high clearance independent 3 link long arm front suspension and high clearance independent 3 link rear long arm suspension lets you dominate the streets and the trails.

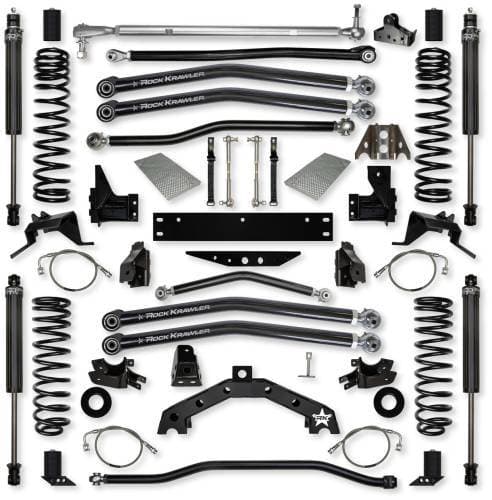

System Includes:

(2) Front frame side weld-on long arm mount
(2) Heat Shield Products thermal barrier
(1) Top Mount PRO-X Drag Link
(1) 1/4” thick laser cut steel cross member
(2) Front high clearance adjustable lower control arm
(1) Front axle side weld-on control arm bracket
(1) Front adjustable upper control arm
(1) Front adjustable anti-wobble track bar
(1) Front sway bar disconnect kit
(2) Front triple rate coil spring
(2) Rear frame side weld-on lower control arm mount
(2) Rear high clearance adjustable lower control arm
(1) Rear double adjustable upper control arm
(1) Rear adjustable anti-wobble track bar
(1) Rear weld-on dual sport track bar bracket
(1) Rear weld-on axle truss
(2) Rear frame side weld-on lower control arm mount
(2) Rear frame side weld-on shock mount
(2) Rear axle side high clearance control arm/shock/sway bar link mount
(2) Rear triple rate coil spring
(2) Front extended brake line
(2) Rear extended brake line

• Bumpstops are included

Shock Information:

• Generic Front Shock Length – 18” Collapsed/ 29” Maximum Extended


• Generic Rear Shock Length – 17.3” Collapsed/ 28.31” Maximum Extended

RRD Spec'd 2.25" Shocks: IN-HOUSE Designed and built - 2.25" Fluted aluminum construction, hard coat military grade black anodizing, 7/8" shaft, IFP (Internal floating piston), better bushings to achieve better misalignment, fully serviceable and rebuildable

• RRD Spec Front Shock, Part Number RRD02293


• RRD Spec Rear Shock, Part Number RRD02294


• FULL PACKAGE = RRD02306

Wheel Fitment:

• We typically recommend 4.5" of backspacing on a wheel used with 33" & 35" tall tires


• We typically recommend 3.5" of backspacing on a wheel used with 37" tall tires

Tire Fitment:

• 33" or 35" Tires using OEM fender flares


• 37" tires if using flat fenders

General Notes:

• All lift heights based on Rubicon models for standard style build (i.e. front bumper and winch, rear bumper and full size spare).


• If building with a spare delete we recommend dropping 1” in coil lift height for the rear.


• If building an overland or heavily up-fitted build in the back, we recommend upsizing 1” in coil lift height for the rear.


• We recommend a new front driveshaft if you plan to off-road routinely.(Adam's Drivesahft,Tom Woods,J.E. Reel)


• Requires removal of the OEM frame side front and rear lower control arm mounts.


• Requires removal of the OEM frame side front and rear upper control arm mounts.


• Requires welding of the front and rear frame side long arm mounts.


• Requires removal of the OEM axle side front upper control arm mount.


• Minor exhaust rerouting required before the collector on the driver's side. This is recommended to be done prior to the suspension system being installed.


• Requires removal of the OEM rear axle side brackets.


• Requires welding of the provided rear axle side control arm/shock/sway bar link bracket, track bar bracket and rear axle truss.


• Requires removal of the OEM frame side rear shock mount.


• Requires welding of the provided frame side rear shock mount.


• Rear shocks will require a standard bushing and sleeve just like the rear lower shock bushing and sleeve. We have removed the weakness of the bar pin setup with the supplied rear upper shock mounts.


• Recommend installing limiting straps to avoid over extension of suspension components after vehicle is all set up.
