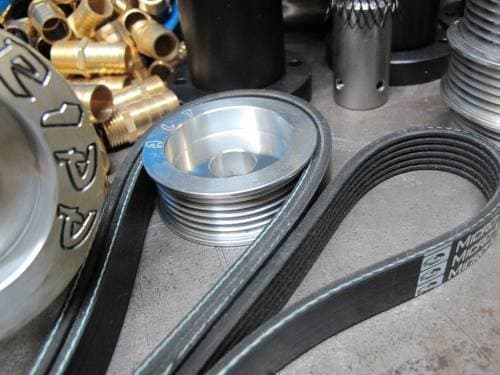

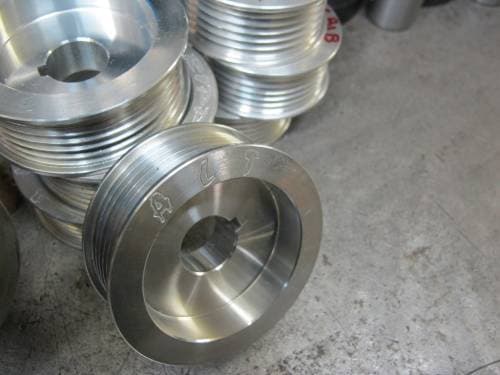

Made from 6061 billet aluminum will deliver faster spool up at sea level. This unit can be used with stock internals but Diablo tuner and larger injectors (GEN2) electronics and an intercooler are a must
Features.
•Made from 6061 billet aluminum.
•2-7/8" OD.
•High quality Gates belt.
•Pulley Hardware included (Bolt + washer)
•Black anodization.
Tech tips:
*When removing the supercharger's pulley; note the orientation of all washers, spacers, and caps. Ensure they are assembled in the same direction. (take a picture before disassembly and after to document the order and direction of hardware) Improper assembly could lead to loosening of hardware.
Belts and pulleys should be serviced every 45-50k miles.
Torque spec. for pulley bolt is: 25ftlbs.
Standard thread, (not reverse thread)
Clear debris from pulleys and belts with a wire bush and or sand paper.
