Pacbrake's Basic Paddle Valve In-Cab Control Kits with Mechanical Gauge display, is designed to integrate In-Cab Controls with a pre-existing Onboard Air system, for 'Simultaneous' Air Spring or pneumatic accessory activation with the push of a button.
Simultaneous Activation (or Inflation) is simply one switch that inflates/deflates both Air Springs together at the same time.
A comparable Basic Independent Activation Kit (HP10124) is also available for those that want to utilize two separate switches, allowing for inflation/deflation of each Air Spring individually.

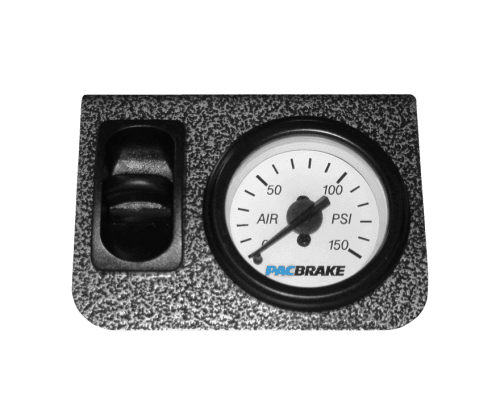

Mechanical back-lit Gauges display pressure from 0psi to 150psi at 10psi increments — numeric markings at 0, 50, 100, & 150psi — allowing for the monitoring and adjusting of your Air Spring pressure.

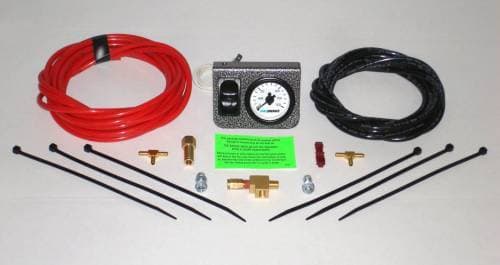

This Kit Includes:
•Single Paddle Valve Dash Switch w/ Mechanical Single Needle Gauge — Simultaneous Activation
•Includes Installation Hardware & Hardware to connect to an existing Onboard Air system only
•Does not include any pre-built harnesses or compressor (See Premium Kit: HP10135, which includes a 12VDC HP325 Series Air Compressor and does not require an Air Tank)
Features:
•Operate your Air Springs (or other pneumatic accessories) right from the driver's seat - an existing Air Compressor is required
•Simultaneous Activation/Inflation; inflates/deflates both air springs at the same time
•Use this kit in conjunction with one of our air tank kits and air compressor kits to build your own customizable onboard air system
Fitment:
Universal
Notes:
•This kit does not include and requires the use of an air compresor (or existing onboard air system) to work with an Air Suspension system
•If adding an air tank, a pressure switch is required;
(HP10110) for 105-135 PSI / (HP10111) for 85-105 PSI
•Mechanical Gauges require a minimum of 6" (101.6mm) of clearence behind the bracket for routing of the air line
