HOME / PRODUCT / MAHLE Clevite Pistons for Chevy/GMC (2001-05) 6.6L Duramax, 0.000 over (standard size) Right Bank (must order set of 4)
SaleMAHLE Clevite Pistons for Chevy/GMC (2001-05) 6.6L Duramax, 0.000 over (standard size) Right Bank (must order set of 4)

MAHLE Clevite Pistons for Chevy/GMC (2001-05) 6.6L Duramax, 0.000 over (standard size) Right Bank (must order set of 4)

SKU: BHGJ224-3452
MAHLE Clevite Pistons for Chevy/GMC 6.6L Duramax, 0.000 over (standard size) Right Bank (must order set of 4) •Material: Aluminum •Head Type: Flat w/Combustion Chamber •Engine Side: Right Bank •Bore: 4.055" (103mm) •Compression Height: 1.961" •Pin Diameter: 1.3580" •Minimum Skirt Clearance: 0.0018" •Measure Skirt Clearance at Rings: 0.670" from the bottom of skirt •Ring Sizes: •-3.00mm •-2.00mm •-3.00mm
$137.28$157.87
Loading options…

Description

Interchanges
General Motors: 97226116, 97303755

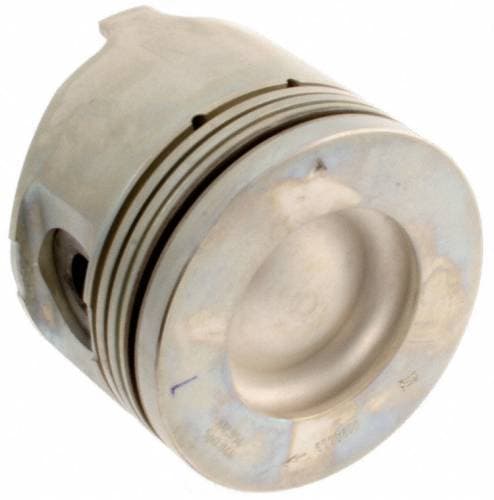

*Image is not of this piston.
