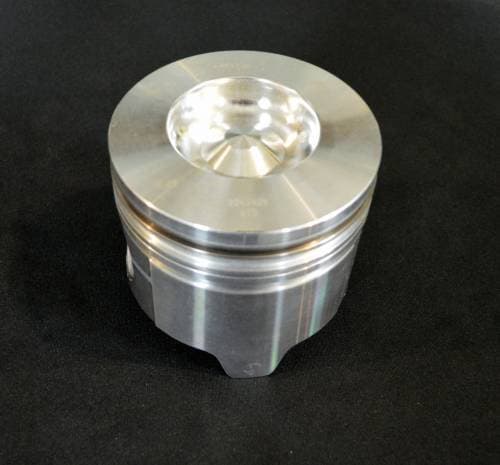

MAHLE Clevite Piston for Chevy/GMC 6.5L Diesel, w/ 0.010 Reduced Height (Standard Size)
MAHLE Clevite Standard Size Aluminum Piston with 0.010 Reduced Height to Accommodate a .010 Milling/Re-surfacing on the Block Deck (top) or Head Face and Still Maintain the Reliable Factory Compression Ratio and Head Gasket Thickness.
•Head Type: Ricardo Bowl Hard Anodized
•BORE: 4.054" (102.97mm)
•PIN DIAMETER: 1.2200"
•MATERIAL: Aluminum
•MIN. SKIRT CLEARANCE" 0.0040"
•MEASURE SKIRT CLEARANCE AT: 0.630" from the bottom of skirt
