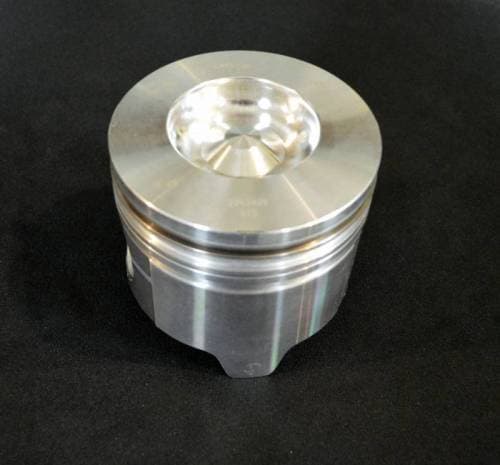

MAHLE Clevite Piston, Dodge (1999.5-02) 5.9L Cummins HO (VIN Code 7), 0.020 Oversized

MAHLE Clevite Aluminum Piston Full Length: 4.149" Pin O.D.: 40.0 mm 1.575" Compression Height: Standard Material: Aluminum Additional Pin Comment: Floating Piston Pin Diameter: 1.575" 40.00MM Combustion Chamber Depth: 0.74" Combustion Chamber Diameter: 2.335" Recess Volume: 45.5cc Note: Bowl is centered Keystone top ring Piston Skirt Clearance: 0.472" from the bottom of skirt Compression Distance: 2.818" 71.6MM Compression Ring Groove 1: 3.00MM Compression Ring Groove 2: 2.40MM Oil Ring Groove Width 1: 4.00MM Note 1: Non-HO, Grade A Replaces Cummins 946051
