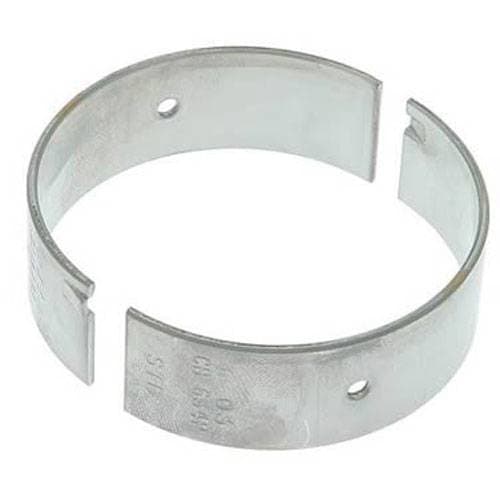

MAHLE Clevite Connecting Rod Bearings, Chevy/GMC (2001-11) 6.6L Duramax, (0.010mm under) High Performance (H-Series)

H-Series Performance Bearing Wall 0.0005" Thinner For 0.0010" More Oil Clearance. No Dowel Hole In Cap Half. Material: TM-77 Min. Std. Shaft Diameter: 2.4764" (62.9006mm) Max. Std. Shaft Diameter: 2.4772" (62.9209mm) Min. Vert. Oil Clearance: 0.0010" (0.0254mm) Max. Vert. Oil Clearance: 0.0034" (0.0864mm) Max. Wall: 0.0795" (2.0193mm) Min. Brg. O.D. or Housing Bore: 2.6372" (66.9849mm) Max. Brg. O.D. or Housing Bore: 2.6378" (67.0001mm) Max. Length: 0.9340" (23.7236mm) (sizes above do not reflect under sizing) ***Undersize Bearings can be used but the Crankshaft must be Rehardened with a Nitride Heat Treatment
