Supports: Up to 100% injectors w/ twin pumps
Features & Details:
•75mm Billet Compressor wheel
•80mm s400 turbine wheel
•Larger 4" inlet
•Ported anti-surge compressor cover
•Largest upgraded 360 thrust bearing on the market
•Drop in turbo (no modification except air filter)
•REQUIRES 4" INLET AIR FILTER UPGRADE
•DOES NOT REQUIRE upgrades to the high pressure turbo
•NO CORE REQUIRED
•Includes Install Kit
How much power you make will greatly depend on your injector size and if you can hold rail pressure. Stock pumps don't always hold rail pressure at higher, so if you are dropping rail we recommend upgrade your HPFP or going with twin pumps.

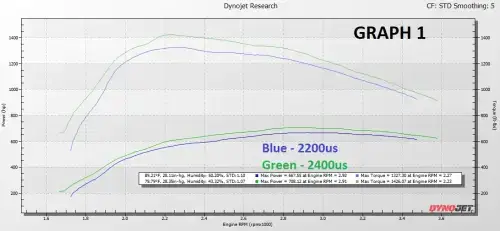

Stock injectors: GRAPH 1
2200us - 667hp 1327tq BLUE LINES
2400us - 708hp 1426tq GREEN LINES

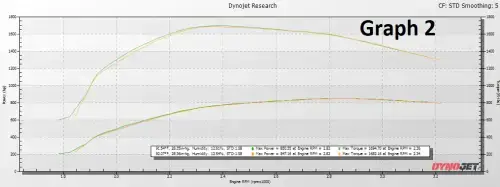

30% nozzles: GRAPH 2
2150us - 850hp 1694tq

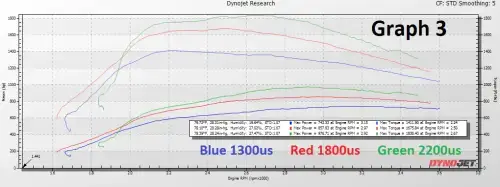

100% nozzles: GRAPH 3
1300us: 742hp 1411tq BLUE LINES
1800us: 857hp 1675tq RED LINES
2200us: 946hp 1787tq GREEN LINES
***REQUIRES UPGRADED 4" INTAKE TO FIT OVER UPGRADED 4" TURBO INLET***

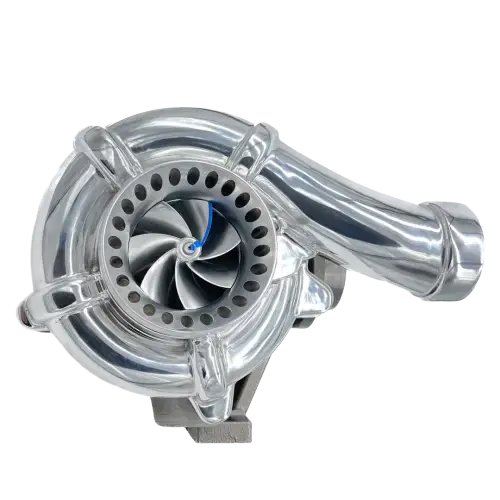

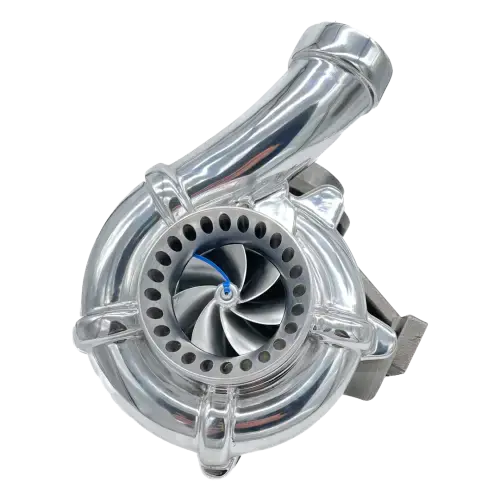

**Pictures shown is the polished version, which is an additional charge***
**Our polished covers can take up to a 1-2 week lead time**
