Features & Details:
Stage 1 High Pressure-
•Drop in Ready
•Upgraded billet compressor wheel
•Ported compressor cover
•High flow turbine wheel
•Upgraded 360 journal bearing design
•Hardware & Install kit included
•Up to $400 fully refundable core charge
Stage 2 Low Pressure-
••75mm Billet Compressor wheel
•80mm s400 turbine wheel
•Larger 4" inlet
•Ported anti-surge compressor cover
•Larger upgraded 360 thrust bearing on the market
•Drop in turbo (no modification except air filter)
•REQUIRES 4" INLET AIR FILTER UPGRADE
•NO CORE REQUIRED
Recommend injectors:
•30% to 100% with twin pumps
•850hp to 1000hp capable larger injectors

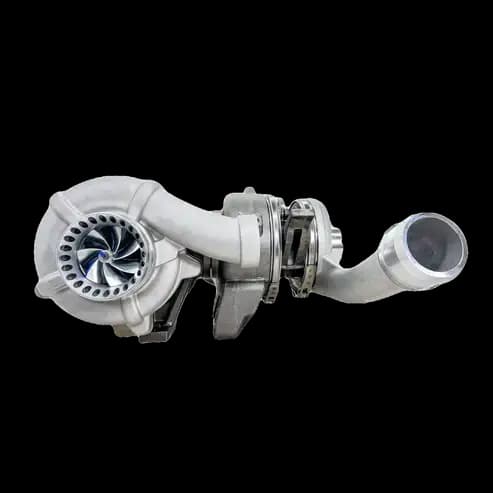

We have worked on our KC Fusion compound turbo set up for several years, changing, upgrading and perfecting the product. now it is ready for all to enjoy. This compound turbo set up is meant for those who want to really open up the raw power of the 6.4 Powerstroke. This turbo set up is recommended for those who want a big boost in performance, but still have the option of light towing.
EXHAUST BRAKES: We get asked a lot about exhaust brakes and if they work with our turbos, these will retain the OEM feature if the vehicles calibration allows and is setup for it. We have found that some brands have clearance issues and might cause the brake to hinder performance, rub the turbine wheel, or cause other issues. These brakes typically use some sort of flapper to close which causes extreme exhaust back pressure to aide in braking. This can be hard on a turbo and motor and is not recommended.
***REQUIRES UPGRADED 4" INTAKE TO FIT OVER UPGRADED 4" TURBO INLET***
