Supports: Up to 190cc/30% injectors
Features & Details:
•Powder Coating can take up to 3 weeks before it ships
•515 to 615 HP with supporting mods

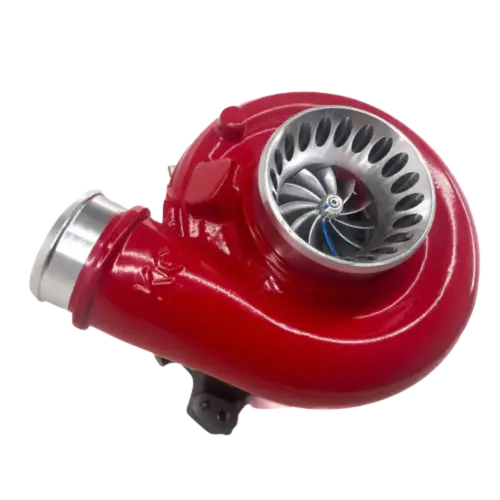

•Redesigned Jetfire 64mm single plane point milled billet compressor wheel with extended tip technology
•Redesigned Jetfire 66mm 10 blade quick spool turbine wheel
•Upgraded .70AR race compressor cover with drilled hole surge ring for maximum air flow
•New high flowing vanes
•Upgraded 360 thrust bearing
•100% drop in ready (no modifications required)
•New VGT solenoid
•Brand new! NO CORE Required
**We recommend 50 state legal SCT tuning to go with your turbo**
**Our polished covers require a 1-2 week lead time**
NOTE: We build our stage 2 turbos from 2003 cores. These come with the better turbine wheel, better vanes, and will bolt on ANY YEAR. Some years you will only run 2 mounting bolts instead of 3.
EXHAUST BRAKES: We get asked a lot about exhaust brakes and if they work with our turbos, these will retain the OEM feature if the vehicles calibration allows and is setup for it. We have found that some brands have clearance issues and might cause the brake to hinder performance, rub the turbine wheel, or cause other issues. These brakes typically use some sort of flapper to close which causes extreme exhaust back pressure to aide in braking. This can be hard on a turbo and motor and is not recommended.
