Supports: Up to 205cc/30% injectors
Features & Details:
•Powder Coating can take up to 3 weeks before it ships

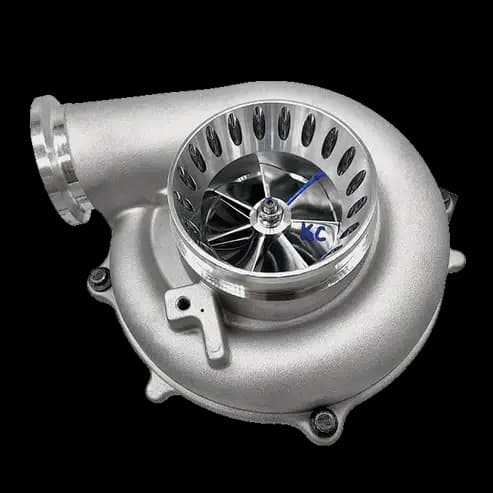

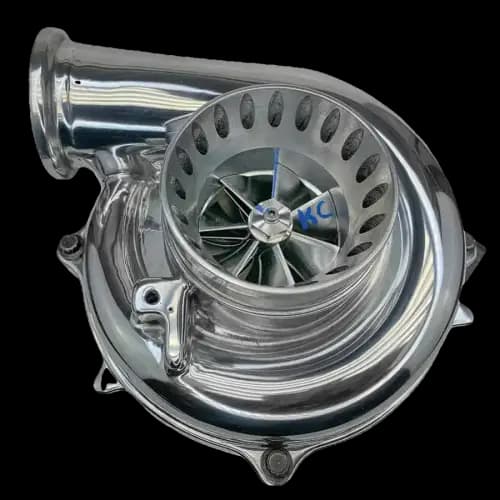

•100% drop in turbo (no modifications required)
•63mm 7x7 SXE style compressor wheel with extended tip technology
•73mm SXE style turbine wheel
•3.5" ported compressor housing with drilled anti-surge for high flow
•High Flow Non-EBPV outlet flange
•Upgraded 360 Thrust Journal Bearing Design

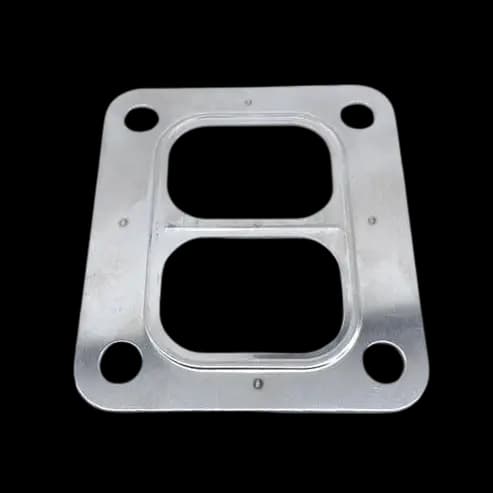

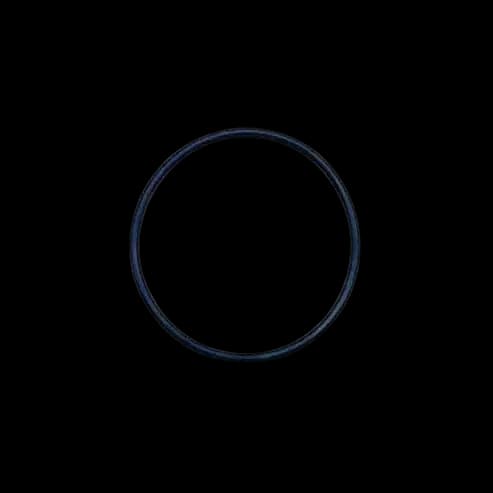

•Comes with all gaskets and o-rings to install

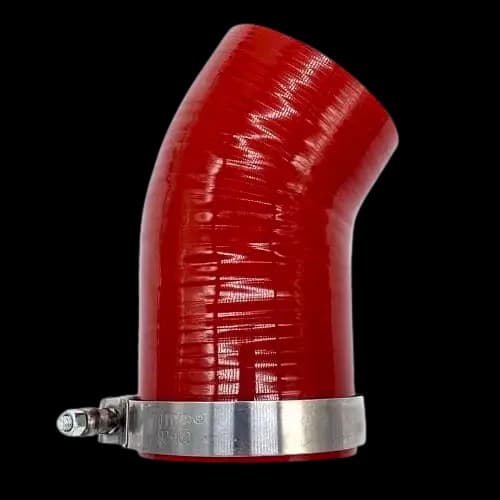

•Comes with new appropriated boot of selected CCV option
This turbo will surprise you at how much it will wake up your 7.3! We have torture tested it for longevity, proven its capability on the dyno, and at the Race Track. The 1.0 A/R Housing is intended to cool your EGTs above 3000 RPMS. For dedicated tow rigs and daily drivers, the .84 A/R Housing will provide a quicker spool and cooler EGT's below 3000 RPMs.

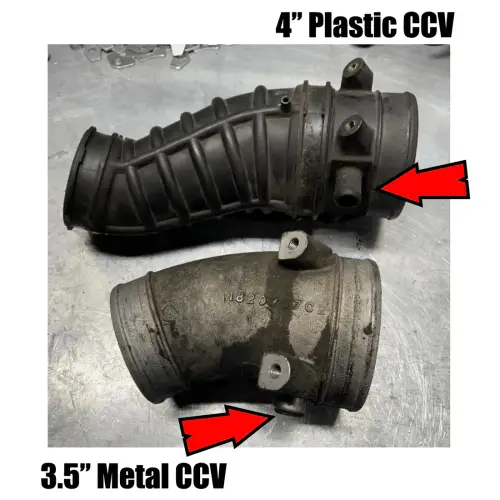

**Please select your trucks CCV when ordering**
**We Highly Recommend adding these products for best results:**
1. Upgrading your Up-Pipes
2. Upgrading EBPV Pedestal
3. Running a Hydra Programming Chip
**EXHAUST BRAKES: We get asked a lot about exhaust brakes and if they work with our turbos. We have found that some brands have clearance issues and might cause the brake to hinder performance, rub the turbine wheel, or cause other issues. These brakes typically use some sort of flapper to close which causes extreme exhaust back pressure to aide in braking. This can be hard on a turbo and motor and is not recommended. It will be up to the customer to verify fitment and functionality.**
**Our turbos are designed to fit directly in 7.3 equipped pick-up trucks. Although our turbos can drop into 7.3 equipped Vans, you will need to modify the turbo intake boot and down-pipe for proper fitment**
