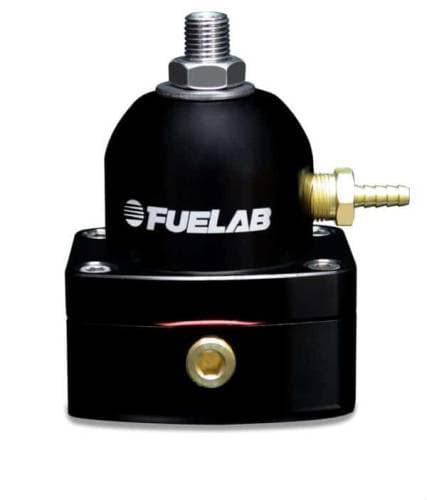

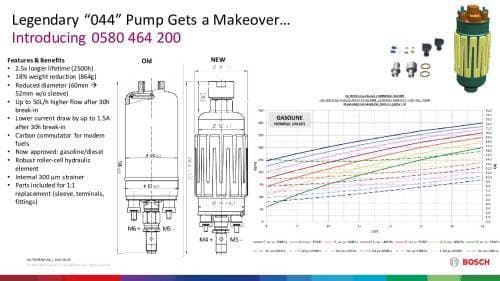

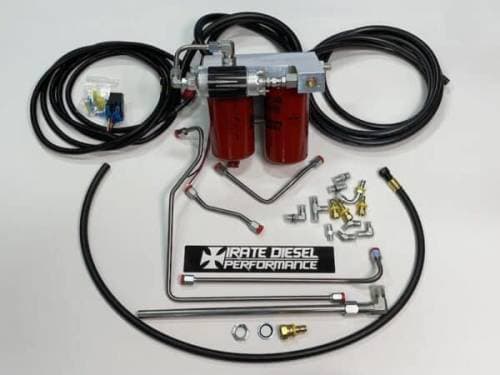

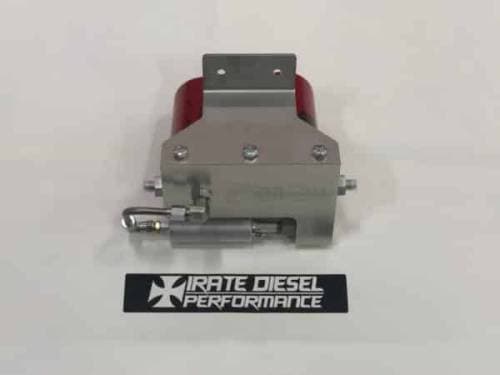

Irate Diesel Standard COMPLETE fuel system. 5/8″ pickup tube, Parker 801-10 line from tank to IDP 304ss fuel bracket, Baldwin filters NEW IDP BILLET filter base ,BOSCH 464-200 fuel pump, 801-8 line to motor, Irate regulated return with Fuelab regulator and liquid filled gauge, 801-6 return line and wiring harness. System is complete from the tank forward and gets rid of all those pesky fuel bowl leaks and in tank pick-up issues. This system uses a water separator before the pump and a final filter after the pump to provide clean water free fuel going to your 7.3L!

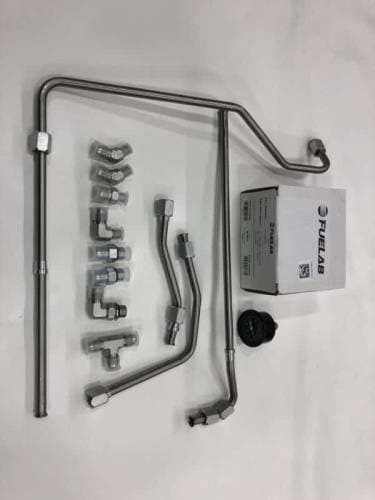

***Comes with our stainless steel hardline fuel bowl delete Regulated return kit!!
This system will support up to a 250/200 injector or support 550-600RWHP.
In some instances you may have to remove the up-pipe on the drivers side to fit the new supplied 90* fitting but this is rare.
If you have a gen3 or BTS HPOP set up, please let us know in the checkout so we can bend you the correct lines to clear them.
