This is a great turbo for quick spool up and flows enough to support STOCK to moderate injectors. This unit flows 74lbs per min. Billet wheel and 360 thrust from the factory!
This turbo comes wit the 68mm turbine and is great for 6.0L trucks looking for the fastest spool up as well as being able to handle up to 175cc injectors.
This unit utilizes an all-new compressor section, with an FMW compressor, and a new, 4”/2.5” hose-type compressor, which makes it a direct-fit for the popular aftermarket units. It also features the BWTS severe duty thrust system, with 6 wear pads vs. 3 for the standard thrust.
**Comes as a “super core” so you will need to add housing of choice!

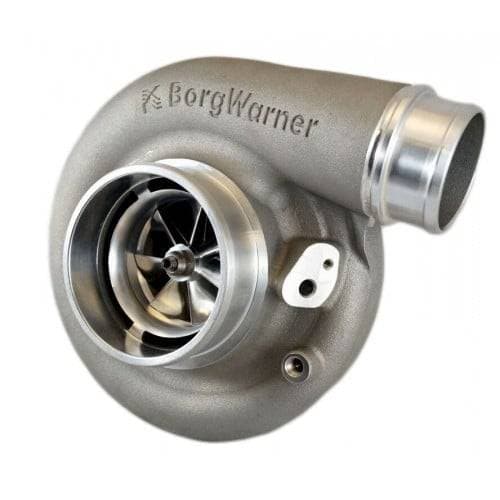

S300SX-E SuperCore Assembly 8376
61.44mm / 2.42” Compressor Inducer Dia.
83.47mm / 3.29” Compressor Wheel O.D.
67.56mm / 2.66” Turbine Exducer Dia.
76.20mm / 3.00” Turbine Wheel O.D.
Straight Compressor Outlet
