Features:
•83% Larger Core than OEM for superior cooling
•+16 HP Gain at heat saturation (dyno proven)
•Up to 30°F Lower Intake Air Temps
•Up to 30% Less Pressure Drop

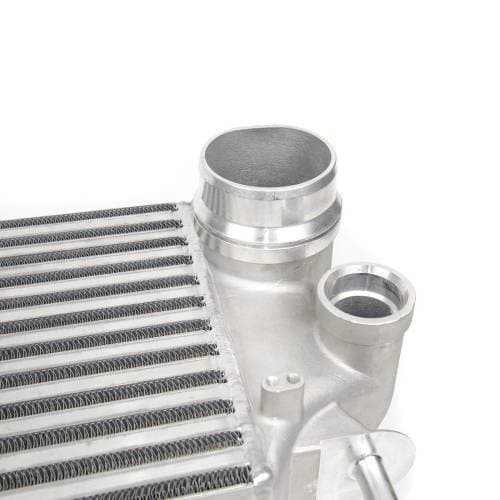

•Cast Aluminum End Tanks for durability and improved airflow
•Bar-and-Plate Design with offset fins for optimal heat dissipation
•C.A.R.B. Certified (EO# D-794) for emissions compliance
•Fully TIG Welded and vacuum brazed
•Quick Installation – installs in under 2 hours using factory hardware
•Direct-Fit for 2015–2020+ Ford F-150 & Raptor EcoBoost models
???? Bonus Feature – Integrated Drain Plug
Condensation is a known issue on the F-150 EcoBoost platform. Garrett addresses this with a fully machined drain plug to easily remove moisture buildup. Simply remove the bolt with a 3/8" wrench, catch any fluid, and rev the engine gently to clear any residuals.

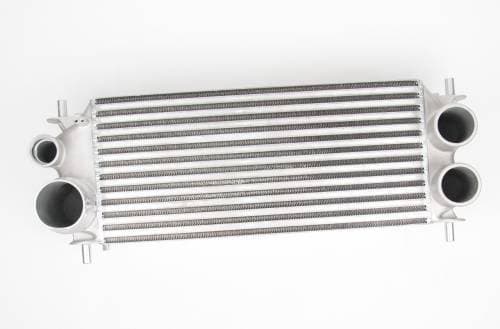

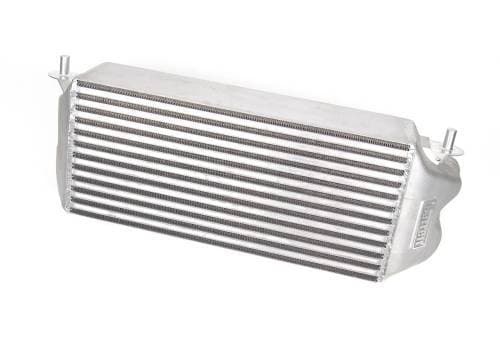

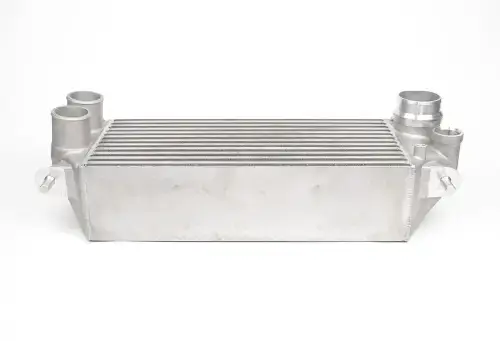

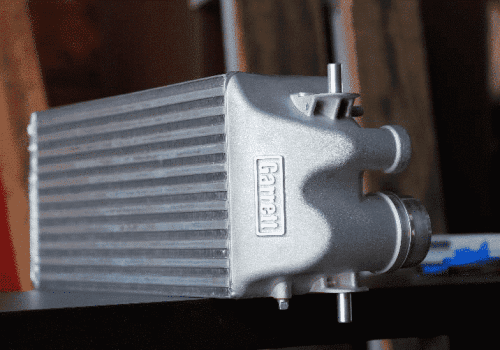

???? Intercooler Specs:
Core Dimensions: 21" x 5.32" x 9.43"
Application: 2015+ Ford F-150 & Raptor (2.7L / 3.5L EcoBoost)
Part Number: 870702-6001
⚠️ Notes:
Will not fit other vehicle applications.
Grille shutters must be removed to install this product.
