Key Features & Benefits
✔ Next-Generation Compressor Aero – Increased efficiency, faster spool, and more power.
✔ Up to 10% More Flow – Compared to Gen I, improving boost response and top-end output.
✔ Direct Gen I Upgrade – Compatible with Gen I turbine and compressor housings for seamless installation.
✔ Pre-Assembled & Calibrated – Comes with a 0.5 bar actuator for precise boost control.
✔ Internal Wastegate – Designed for easy integration with OEM and custom setups.
Technical Specifications
General Specs
•Horsepower Range: 475-825 HP
•Engine Displacement: 2.0L - 3.5L
•Rotation: Standard
•Actuator: Pre-installed and calibrated at 0.5 bar
Compressor Specs
•Inducer: 58mm
•Exducer: 71mm
•Trim: 65
•A/R: 0.72
Turbine Specs (Varies by Selection)
•Inducer: 60mm
•Exducer: 55mm
•Trim: 84
•A/R Options: 0.83 / 1.01
Fitment & Installation

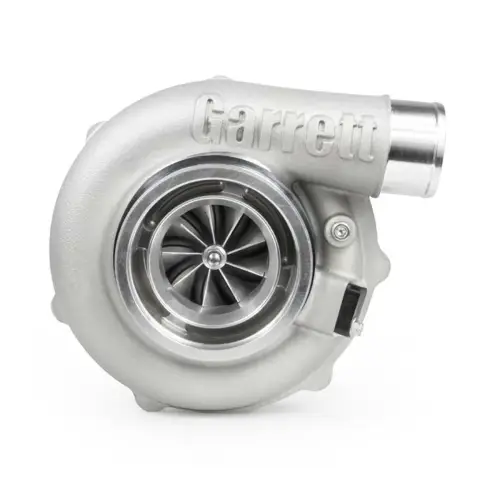

The Garrett G30-825 Turbocharger is designed for performance-focused builds, with multiple A/R options to fine-tune power delivery:
•0.83 A/R: Best for quick spool and responsive street performance.
•1.01 A/R: Optimized for top-end power in high-boost race applications.
