Features
•Fits 2023-2025 F-250/F-350 4WD diesel applications
•Approximately 25% increased front wheel travel over stock
•ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain

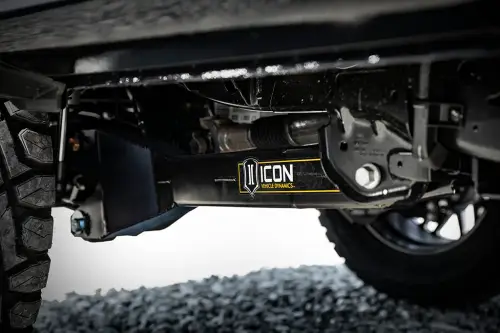

•Fabricated radius arms offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock
•ICON shocks feature vehicle specific tune for superior performance and ride quality
•ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
•ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
•ICON 2.5 Centerline steering stabilizer kit with piggyback reservoir offers increased steering damping
•Track bar drop bracket reduces track bar angle and corrects bump steer geometry
•Adjustable track bar allows fine tuning of track alignment and improves handling characteristics
•Shocks are fully rebuildable and revalvable
•Hard anodized, corrosion resistant, one-piece impact extruded aluminum shock bodies with 7/8" shafts
•FK Rod End bearings provide extended longevity and minimal deflection
•Lifetime guarantee against coil spring breakage or sag
•Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
Notes
•OEM Wheels & Tires Fitment: Yes
•Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
•Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
•Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
•Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
•APPLICATION NOTE #1: Only fits 4WD models
•APPLICATION NOTE #3: Not compatible with F-350 Cab & Chassis models
•APPLICATION NOTE #6: Springs are rated for diesel engines only
•APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
•APPLICATION NOTE #115: Lift heights based on 4WD Crew Cab diesel
•APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
•APPLICATION NOTE #161: If equipped with OnBoard Scales also requires sensor bracket part number 66203
•APPLICATION NOTE #198: An iOS operated device is required to run ICON Intelligent Control App
•TECH NOTE: Trucks equipped with Tremor package with have front lift height of 1.5" over stock
•TECH NOTE: Brake line kit (Part # 61111) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
•TECH NOTE: Included rear shocks are compatible with 0-3" of rear lift over stock

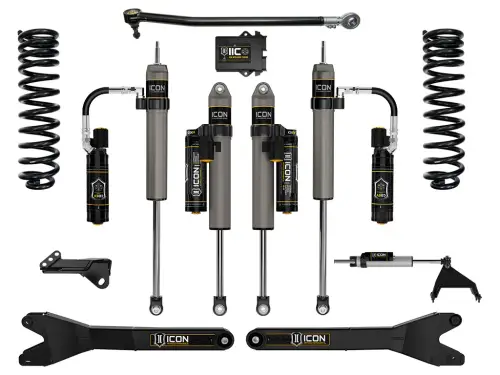

System Components
•62516 (qty: 1) | 23-25 FORD F-250/F-350 FRONT 2.5" DIESEL DUAL RATE SPRING KIT
•67800EP (qty: 1) | 17-25 FSD 4WD 0-2.5" FRONT 2.5 VS RR CDEV PAIR
•37705EP (qty: 1) | 17-25 FSD 0-3" REAR 2.5 VS PB CDEV PAIR
•93502 (qty: 1) | 23-25 FSD IIC INSTALL KIT
•64038 (qty: 1) | 17-25 FSD ADJ TRACKBAR KIT
•64039 (qty: 1) | 08-25 FSD TRACK BAR BUMP STEER BRACKET KIT
•65053 (qty: 1) | 23-25 FSD 2.5 PB CENTERLINE STABILIZER KIT
•64043 (qty: 1) | 23-25 FSD 2-5.5" LIFT RADIUS ARM SYSTEM
