Features
•ICON engineered dual rate coil springs provide 2.5” of front lift over stock
•Vehicle specific tuned piggyback reservoir 2.5 Aluminum Series shocks
•ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
•ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes

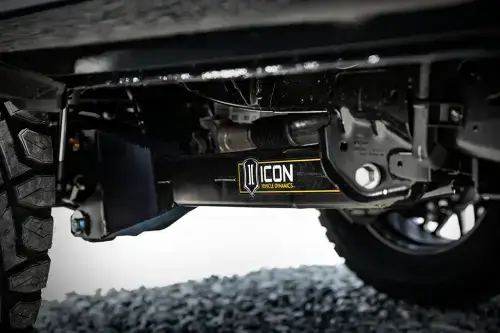

•Fabricated radius arms offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock
•ICON 2.5 Centerline steering stabilizer kit with piggyback reservoir offers increased steering damping
•Leaf spring expansion packs and blocks for more compliant ride quality and reduced axle wrap
•Increased wheel travel and improved ride quality over stock with no change in towing capacity
•Adjustable track bar ensures proper axle placement and improves handling
•Less body-roll than stock
•Lifetime guarantee that springs won’t sag or break
•No drive shaft modifications required
•Shocks are fully rebuildable and re-tunable
•100% Bolt-on system - no drilling, cutting or welding necessary for install
Notes
•OEM Wheels & Tires Fitment: Yes
•Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
•Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
•Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
•Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" tires may fit but fender trimming and modifications will be required.)
•APPLICATION NOTE #1: Only fits 4WD models
•APPLICATION NOTE #3: Not compatible with F-350 Cab & Chassis models
•APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
•APPLICATION NOTE #151: Fits single rear wheel models only
•APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
•APPLICATION NOTE #156: Springs are rated for gasoline engines
•APPLICATION NOTE #157: Lift heights based on 4WD Crew Cab gas
•APPLICATION NOTE #161: If equipped with OnBoard Scales also requires sensor bracket part number 66203
•APPLICATION NOTE #166: If equipped with Dynamic Bending Headlamps and/or Onboard Scales part # 611081 is also required
•APPLICATION NOTE #198: An iOS operated device is required to run ICON Intelligent Control App
•APPLICATION NOTE #209: Reduction in rear spring rate may reduce accuracy of OnBoard Scales, if equipped
•TECH NOTE: Trucks equipped with Tremor package with have front lift height of 1.5" over stock
•TECH NOTE: Brake line kit (Part # 61111) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
•TECH NOTE: Replaces OE rear blocks for .5" of rear lift over stock on F-250. Lowers F-350 rear ride height by .5" compared to stock.

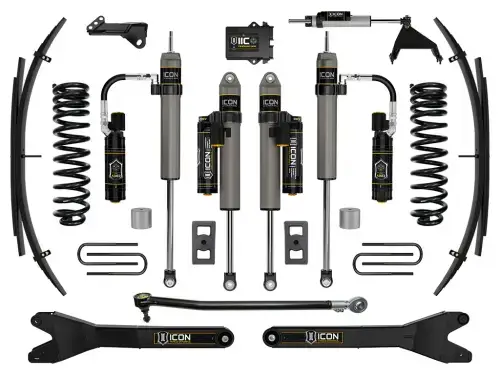

System Components
•62517 (qty: 1) | 23-25 FORD F-250/F-350 FRONT 2.5” GAS DUAL RATE SPRING KIT
•67800EP (qty: 1) | 17-25 FSD 4WD 0-2.5" FRONT 2.5 VS RR CDEV PAIR
•37705EP (qty: 1) | 17-25 FSD 0-3" REAR 2.5 VS PB CDEV PAIR
•93502 (qty: 1) | 23-25 FSD IIC INSTALL KIT
•64039 (qty: 1) | 08-25 FSD TRACK BAR BUMP STEER BRACKET KIT
•64038 (qty: 1) | 17-25 FSD ADJ TRACKBAR KIT
•65053 (qty: 2) | 23-25 FSD 2.5 PB CENTERLINE STABILIZER KIT
•64043 (qty: 1) | 23-25 FSD 2-5.5" LIFT RADIUS ARM SYSTEM
•168507 (qty: 2) | 08-25 F250/F350 LEAF SPRING EXPANSION PACK
•67004 (qty: 1) | 11-25 FSD REAR 12" U-BOLT KIT
•191201 (qty: 1) | 1" CAST BLOCK KIT
•61002 (qty: 1) | 05-25 FSD 2" REAR BUMP STOP SPACER KIT
