Features
•ICON engineered dual rate coil springs provide 2.5” of front lift over stock
•Vehicle specific tuned remote reservoir front and piggyback reservoir rear 2.5 Aluminum Series shocks
•Front and rear shocks equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
•On-vehicle adjustable track bar for optimum front axle centering and minimal deflection
•Dual steering stabilizer kit for smooth wheel control while driving
•Fabricated radius arms offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock
•Leaf spring expansion packs and blocks for more compliant ride quality and reduced axle wrap
•Increased wheel travel and improved ride quality over stock with no change in towing capacity
•Less body-roll than stock
•Lifetime guarantee that springs won’t sag or break
•No drive shaft modifications required
•Shocks are fully rebuildable and re-tunable
•100% Bolt-on system - no drilling, cutting or welding necessary for install
Notes
•OEM Wheels & Tires Fitment: Yes
•Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
•Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
•Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
•Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" tires may fit but fender trimming and modifications will be required.)
•APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
•APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
•APPLICATION NOTE #151: Fits Single Rear Wheel Models Only
•TECH NOTE: Replaces OE rear blocks for .5" of rear lift over stock on F-250. Lowers F-350 rear ride height by .5" compared to stock.
•TECH NOTE: Compatible with 4WD models only
•TECH NOTE: Not compatible with F-350 Cab & Chassis models
•TECH NOTE: Brake line kit (Part # 61111) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
•TECH NOTE: ICON track bar bracket part # 64039 is also recommended to correct bump steer geometry for 2.5-5.5" of front lift

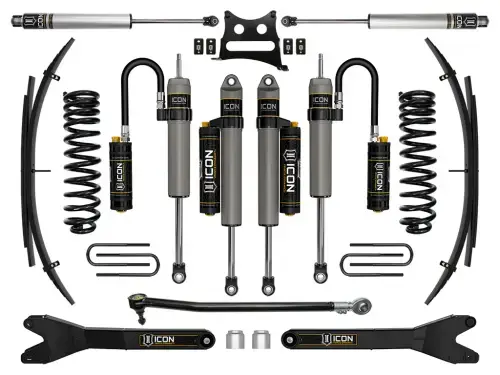

System Components
•62510 (qty: 1) | 05-19 FSD FRONT 2.5" DUAL RATE SPRING KIT
•67800CP (qty: 1) | 05-25 FSD 4WD 0-2.5" FRONT 2.5 VS RR CDCV PAIR
•37705CP (qty: 1) | 99-25 FSD 0-3" REAR 2.5 VS PB CDCV PAIR
•64038 (qty: 1) | 17-25 FSD ADJ TRACKBAR KIT
•64041 (qty: 1) | 05-22 FSD RADIUS ARM SYSTEM
•65000 (qty: 1) | 05-22 FSD DUAL STABILIZER KIT
•36511 (qty: 2) | 99-25 FSD 4WD STABILIZER (DUAL OPPOSING) 2.0 VS IR
•64037 (qty: 1) | 05-25 FSD 2" BUMP STOP SPACER KIT
•168507 (qty: 2) | 08-25 F250/F350 LEAF SPRING EXPANSION PACK
•191201 (qty: 1) | 1" CAST BLOCK KIT
•67004 (qty: 1) | 11-25 FSD REAR 12" U-BOLT KIT
•61002 (qty: 1) | 05-25 FSD 2" REAR BUMP STOP SPACER KIT
