Features

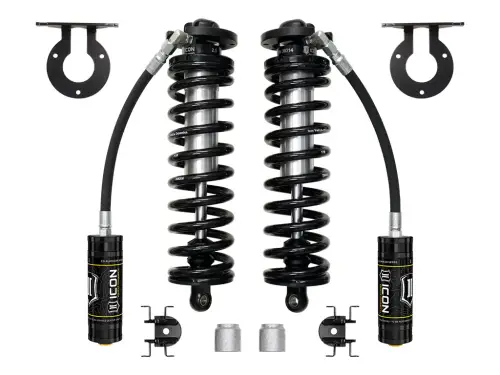

•Bolt-in system fits in OE coil bucket location
•Ride height adjustable coilovers provide 2.5-3"
•Decreased body roll and improved on and off-road ride dynamics
•Vehicle-specific shock valving provides unparalleled ride quality and control
•Shocks are fully rebuildable and revalveable
•Coilover conversion allows for addition of secondary shock
•Corrosion resistant CAD plated coilover shock body with 7/8" shaft
•ICON engineered coil springs guaranteed for life against sagging or breakage
•FK Rod End bearings for extended longevity and minimal deflection
Notes
•Factory Wheels & Tires Fitment: Yes
•Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
•Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
•Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
•Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" with fender trimming and modifications required)
•APPLICATION NOTE #1: Only fits 4WD models
•APPLICATION NOTE #30: An adjustable track bar is recommended to realign the axle but not required.
•APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
•APPLICATION NOTE #88: Removal of the coil centering cup in factory coil bucket required for installation
•APPLICATION NOTE #120: Secondary shock options available, contact ICON for more details.
•APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
•TECH NOTE: Super Duty diesel models without Tremor package will have front lift height range of 2.5-3" over stock
•TECH NOTE: Super Duty diesel models equipped with Tremor package will have front lift height range of 1.5-2" over stock
•TECH NOTE: Super Duty gas models without Tremor package will have front lift height range of 3-3.5" over stock
•TECH NOTE: Super Duty gas models equipped with Tremor package will have front lift height range of 2-2.5" over stock
•TECH NOTE: Brake line kit (Part # 61111) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
•TECH NOTE: If installing with ICON 2.5 Series remote reservoir secondary shocks, reservoir doubler kit part number 611003 is also required
•TECH NOTE: Due to tight clearances and varying placement of vehicle’s wiring harness in the upper front-passenger wheel well area, installer must ensure adequate clearance between the harness, coilover reservoir, and other components to prevent chafing/damage to wire harness. If adequate clearance cannot be achieved, please contact ICON Customer Service.
