Features
•Vehicle specific tuned front and rear shocks for superior shock damping and control
•Increased wheel travel and improved ride quality over stock
•Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
•Adjustable 2.5 Series coilovers provide 1.25-3" front lift height over stock
•Tubular UCAs for added strength, durability, and alignment correction for better drivability
•UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
•6061 aircraft grade aluminum CNC machined components
•Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
•Dual rate rear coil springs improve performance and ride quality while providing .75" of rear lift
•FK Rod End bearings for extended longevity and minimal deflection
•2.0 Aluminum Series internal reservoir rear shocks with 5/8" shafts
Notes
•OEM Wheels & Tires Fitment: Yes
•Recommended Aftermarket Wheels: 17x8.5 with 6.32” Backspace / 40mm Offset
•Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.6” Backspace / 40mm Offset
•Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
•APPLICATION NOTE #1: Only fits 4WD models
•APPLICATION NOTE #4: Advertised lift heights based on models equipped with gasoline engine
•APPLICATION NOTE #30: An adjustable track bar is recommended to realign the axle but not required
•APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
•APPLICATION NOTE #150: Shocks are fully serviceable
•APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles
•APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install

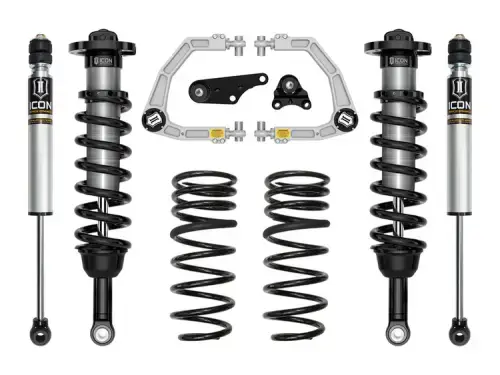

System Components
•58692 (qty: 1) | 25 4RUNNER 4WD FRONT 2.5 VS IR COILOVER KIT
•58452DJ (qty: 1) | 24-25 TACOMA/24-25 LC250/24-25 GX550/25 T4R TUBULAR UCA DJ PRO KIT
•55160 (qty: 1) | 24-25 TACOMA 4WD/24-25 LC250/25 T4R 4WD FRONT DIFF DROP KIT
•56523 (qty: 2) | 25 4RUNNER 0-3" REAR 2.0 VS IR
•52753 (qty: 1) | 25 4RUNNER .75" DUAL RATE REAR SPRING KIT
