Features
•Vehicle specific tuned 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
•Increased wheel travel and improved ride quality over stock
•Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
•Adjustable 2.5 Series coilovers provide 1.25-3" front lift height over stock
•ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
•ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near •instantaneous compression damping changes
•Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
•UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
•6061 aircraft grade aluminum CNC machined components
•Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
•Dual rate rear coil springs improve performance and ride quality while providing .75" of rear lift
•On-vehicle adjustable billet aluminum rear track bar properly centers rear axle while also improving rear suspension performance
•FK Rod End bearings for extended longevity and minimal deflection
•2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers
Notes
•OEM Wheels & Tires Fitment: Yes
•Recommended Aftermarket Wheels: 17x8.5 with 6.32” Backspace / 40mm Offset
•Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.6” Backspace / 40mm Offset
•Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
•APPLICATION NOTE #1: Only fits 4WD models
•APPLICATION NOTE #4: Advertised lift heights based on models equipped with gasoline engine
•APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
•APPLICATION NOTE #150: Shocks are fully serviceable
•APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles
•APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
•APPLICATION NOTE #198: An iOS operated device is required to run ICON Intelligent Control App
•APPLICATION NOTE #206: This kit is configured for fitment on 4WD models. If installing onto a 2WD Toyota Tacoma or 4Runner, front differential drop kit part number •55160 is not needed and the other suspension system components can be purchased individually with full system functionality. 2WD specific kits are coming soon!

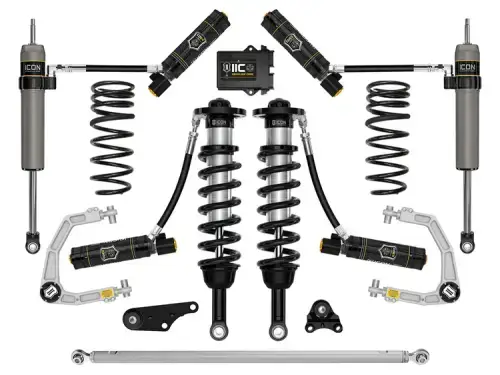

System Components
•58795E (qty: 1) | 25 4RUNNER 4WD FRONT 2.5 VS RR CDEV COILOVER KIT
•58552DJ (qty: 1) | 24-25 TACOMA/24-25 LC250/24-25 GX550/25 T4R BILLET UCA DJ PRO KIT
•55160 (qty: 1) | 24-25 TACOMA 4WD/24-25 LC250/25 T4R 4WD FRONT DIFF DROP KIT
•52753 (qty: 1) | 25 4RUNNER .75" DUAL RATE REAR SPRING KIT
•53509 (qty: 1) | 24-25 TACOMA/24-25 LC250/25 4RUNNER IIC INSTALL KIT
•54202 (qty: 1) | 22-25 TUNDRA/23-25 SEQUOIA/24-25 TACO/LC250/GX550/25 T4R BLT ADJ TRACK BAR
•57872EP (qty: 1) | 25 4RUNNER 0-3" REAR 2.5 VS RR CDEV PAIR
