Features
•Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
•Vehicle specific shock length and pairing with front differential drop yields maximum wheel travel
•Height-adjustable coilovers offer 1.25-3" of lift height adjustment over stock

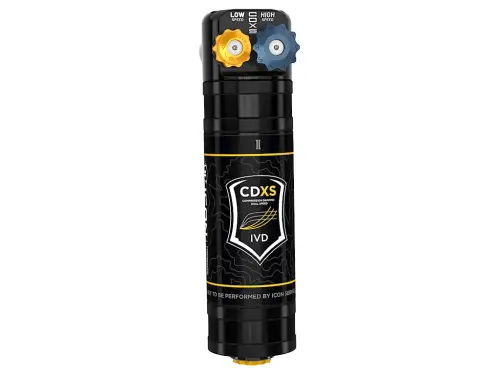

•2.5" diameter shock bodies with remote reservoirs offer increased heat capacity and improved cooling for consistent performance
•ICON engineered coil springs
•6061 Aircraft grade aluminum CNC machined components
•Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
•FK rod end bearings for extended longevity and minimal deflection
•Fully rebuildable and re-tunable
Notes
•OEM Wheels & Tires Fitment: Yes
•Recommended Aftermarket Wheels: 17x8.5 with 6.32” Backspace / 40mm Offset
•Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.6” Backspace / 40mm Offset
•Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
•APPLICATION NOTE #4: Advertised lift heights based on models equipped with gasoline engine
•APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
•APPLICATION NOTE #150: Shocks are fully serviceable
•APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles
•APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
•APPLICATION NOTE #169: 4WD models require front differential drop part # 55160
•APPLICATION NOTE #202: ICON Delta Joint Pro front upper control arms are recommended to maintain proper wheel alignment above 2" of lift
•APPLICATION NOTE #233: Length optimized for 4WD models but will also fit 2WD. Alternatively, for maximum wheel travel on 2WD models consider 2WD specific part numbers.
