Features

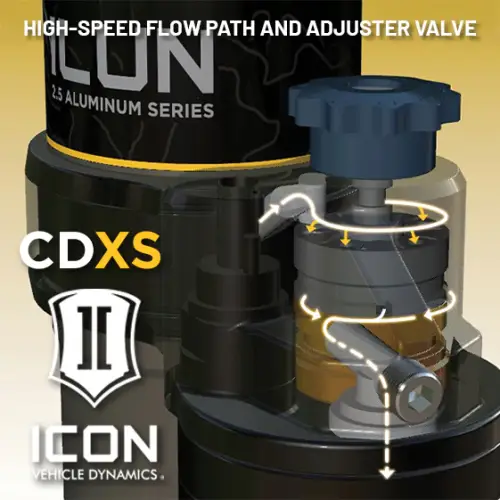

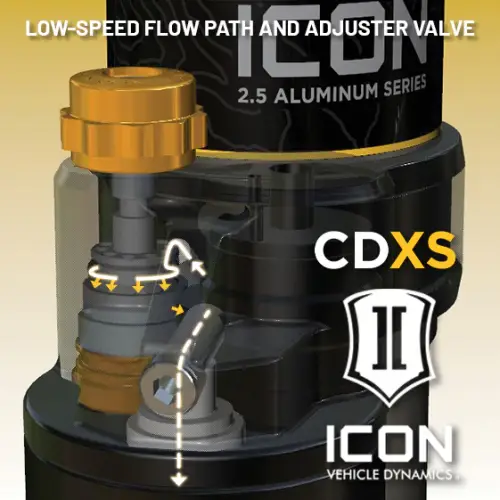

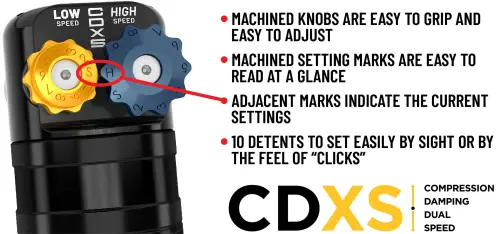

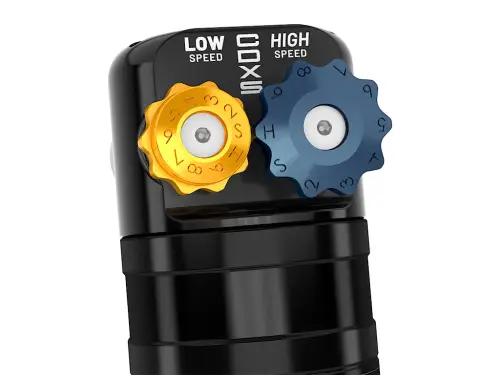

•ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
•ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression

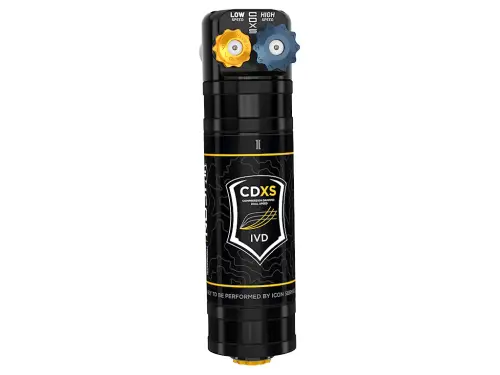

•Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
•One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
•Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range

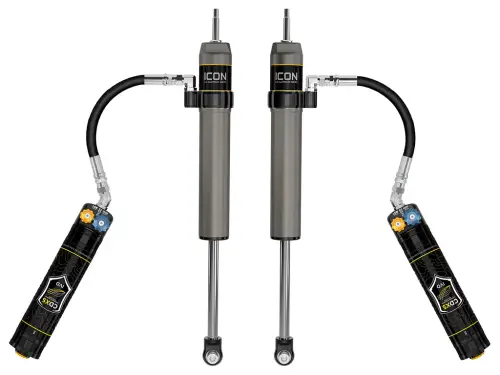

•Nitrogen charged monotube design with remote reservoir
•One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
•7/8” diameter induction hardened, chrome plated shock shaft
•PTFE lined spherical bearings and application specific mounting hardware
•6061 aircraft grade aluminum CNC machined components
•Fully rebuildable and re-tunable
Notes
•APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles
•TECH NOTE: Compatible with 0-1.5” of rear lift on non-TRD Tundras or 0-1" lift on TRD Tundras equipped with rear coil springs
•TECH NOTE: Compatible with 0-3.5” of rear lift on Tundras equipped with rear OE Load-leveling Rear Height Control Air Suspension
•TECH NOTE: Compatible with 0-4” of rear lift on non-TRD Sequoias equipped with rear coil springs or 0-2" lift on TRD Sequoias
