Features
•Increased wheel travel and ride quality over stock
•Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
•Bolt-on design makes for straightforward install
•Decreased body roll
•Vehicle-specific tuned front and rear shocks provide superior damping and control
•CDCV technology allows for quick and easy compression damping adjustment
•Coilovers are adjustable from 0-3" of lift height
•Shocks are fully rebuildable and revalveable
•Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
•2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
•FK Rod End bearings for extended longevity and minimal deflection
•ICON engineered rear coils provide 1" of lift and improved performance
•CNC machined 6061 aircraft-grade aluminum components
Notes
•OEM Wheels & Tires Fitment: Yes
•Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
•Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00” Backspace / 0mm Offset
•Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00” Backspace / 0mm Offset
•Recommended Aftermarket Tires: 33" x 11.25" (Larger tires may fit but fender trimming and modifications will be required.)
•APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only
•APPLICATION NOTE #35: Remote reservoir mounting brackets may interfere with aftermarket bumper mounts/windshield washer bottles
•APPLICATION NOTE #47: 700Lb/In Expedition Coil available for heavier equipped vehicles
•APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle
•APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation

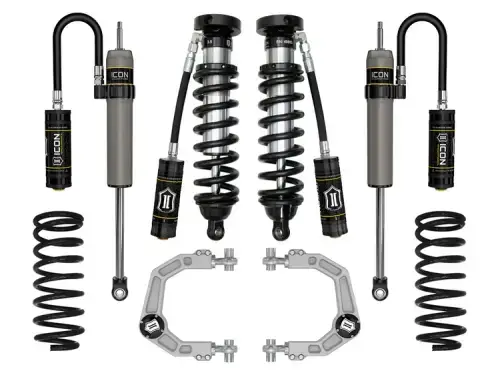

System Components
•58716 (qty: 1) | 96-02 4RUNNER 2.5 VS EXT TRAV RR COILOVER KIT
•58500DJ (qty: 1) | 96-04 TACOMA/96-02 4RNR BILLET UCA DJ KIT
•53015 (qty: 1) | 96-02 4RUNNER 1" REAR COIL SPRING KIT
•57800P (qty: 1) | 96-02 4RUNNER REAR 2.5 VS RR PAIR
