Single Ramps
•Made in the USA
•Limited Lifetime Warranty
•Hybrid Hook and Plate Ramp Ends
•Ability to Hook to Car Hauler Trailer Decks
•Wide Plate-Style Serrated Cross Rungs for Maximum Traction
•Made for Low-Clearance Single-Vehicle Car Hauler Trailers
•Heavy-duty aluminum loading ramps with all-aluminum construction made by certified AWS Welders

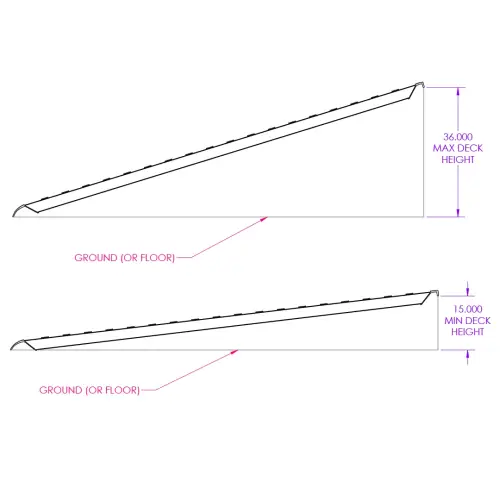

•Minimum Deck Height: 15 in.
•Maximum Deck Height: 36 in.

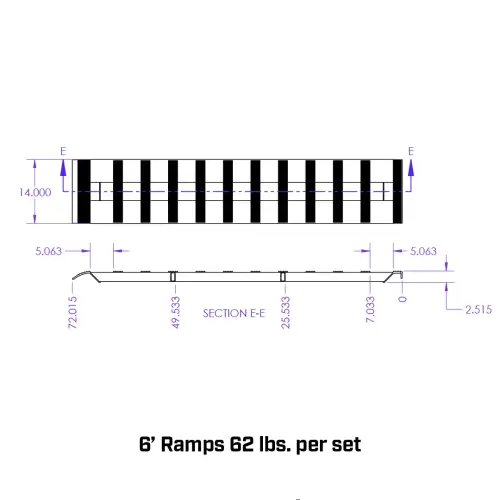

•6′ Ramps: 72″ Long x 14″ Wide x 2″ Thick
– Maximum 3,000 lb. Capacity

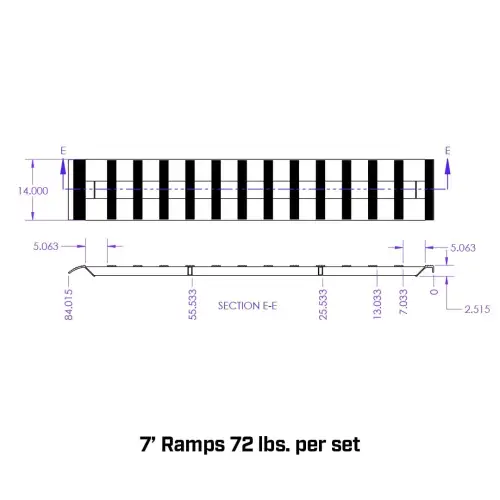

•7′ Ramps: 84″ Long x 14″ Wide x 2″ Thick
– Maximum 3,000 lb. Capacity

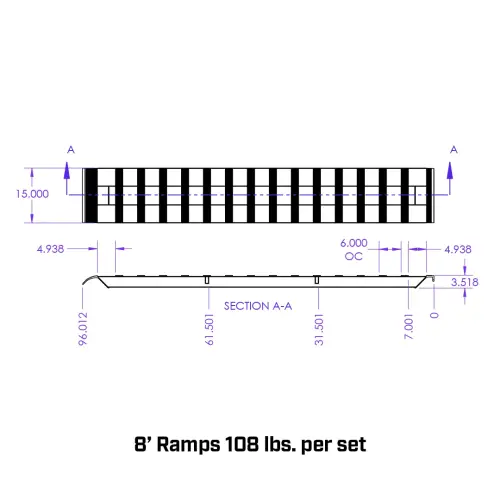

•8′ Ramps: 96″ Long x 15″ Wide x 3.5″ Thick
– Maximum 5,000 lb. Capacity

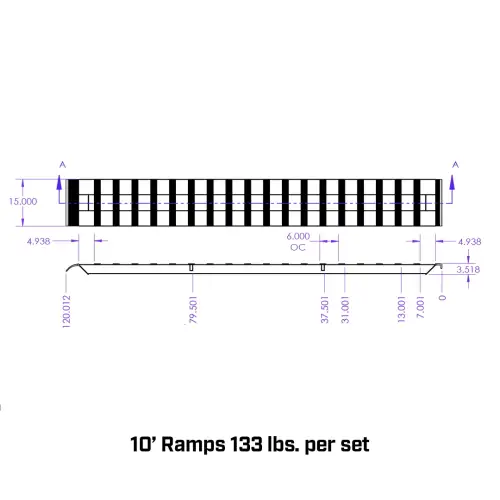

•10′ Ramps: 120″ Long x 15″ Wide x 3.5″ Thick
-Maximum 5,000 lb. Capacity

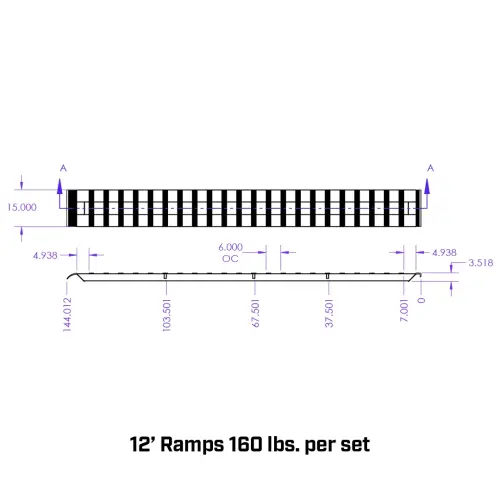

•12′ Ramps: 144″ Long x 15″ Wide x 3.5″ Thick
– Maximum 4,000 lb. Capacity
All GEN-Y products are rigorously tested and exceed the weight testing requirements. Never exceed the recommended capacity on any ramp.
