Fitment:

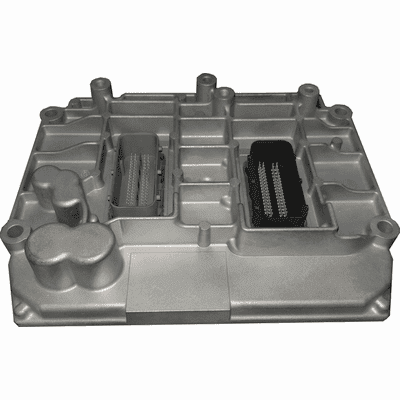

2010 - 2011 Ram Pickups - 6.7L Cummins Diesel Manual Trans.
2011 Ram Cab & Chassis w/Manual Transmission
Reference Numbers: 4992847
Injector Trim Codes
•Trim Code - A unique 6 digit alphanumeric code assigned to each injector based on injector flow data at production. The trim codes allow the ECM to correctly balance •injector performance by adjusting the signal to each injector.

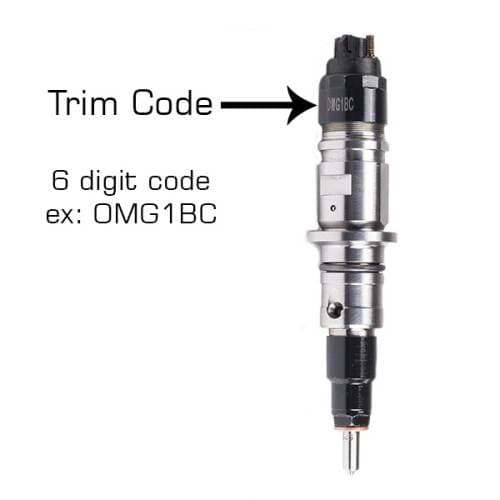

•Location (physical) - Injector Trim Codes can be found on the injector solenoid nut (See photo).
•Location (ECM) - Injector Trim Codes can be found using OE or similar scan tool.
No Trim Codes ? Don't worry there is an other option
•For optimal performance it is recommended to have the correct trim codes programmed to the module. We can do this for you if you have the codes available at the time •of purchase.
•The best method to obtain your trim codes is to pull them from your current ECM with a capable scan tool. If this is not possible, you must remove the valve cover and •manually record the trim code from each injector. It is likely that the valve cover gasket (with integrated wiring harness) will need to be replaced if the valve cover is removed.
•If you do not provide trim codes at the time of purchase we will program the ECM with a generic code for each injector. This will allow you to install the ECM and run the vehicle without setting the check engine light. The generic trim code option is intended for temporary use only.
Core
*CORE MUST BE IN "OFF ENGINE CONDITION" FOR FULL CREDIT*
The purchase of this part includes a separate core charge. While we would appreciate getting the return back as soon as possible, you have 12 months to return the core for a refund. You will no longer be eligible to return the core, or receive a refund, after 1 year from your original purchase. Please see our core policy or contact us with any questions.
Warranty:
•1 Year
•Unlimited Mileage
