Features:
OEM style fitment that requires no tank cutting or drilling

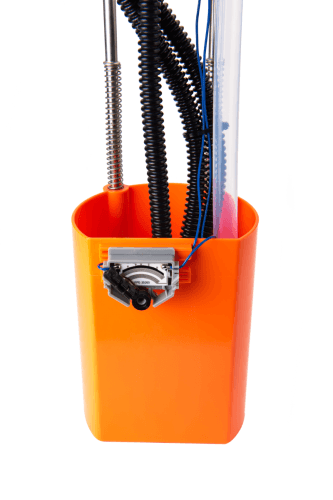

New fuel level electronics and fuel float

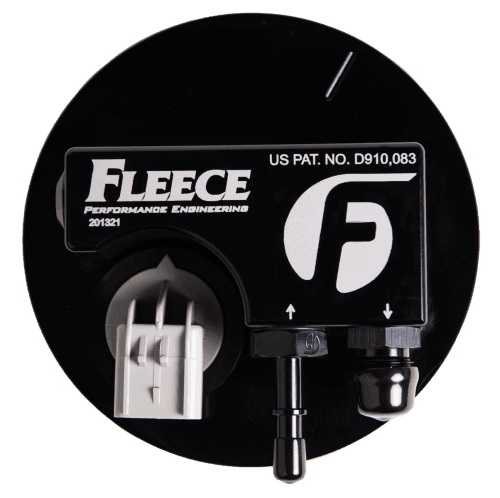

Heavy duty billet aluminum cap
Universal -8 AN ports for professionally plumbing a custom fuel setup
New tank flange seal
Adaptation pigtail connector
Application Notes

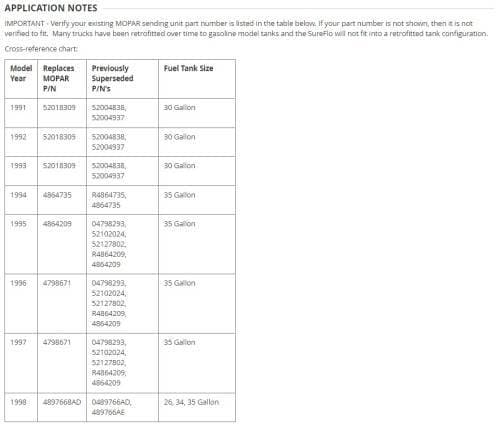

IMPORTANT - Verify your existing MOPAR sending unit part number is listed in the table below. If your part number is not shown, then it is not verified to fit. Many trucks have been retrofitted over time to gasoline model tanks and the SureFlo will not fit into a retrofitted tank configuration. For Model Year 1998 trucks equipped with a 12 valve engine - your vehicle will require our 1998-2002 SureFlo (FPE-SF-CUMM-9802). These trucks would have been originally equipped with Carter sending unit part number 52102079AB.
You can also verify your proper part number by the resistance range of the level sender on your existing unit.
If your stock sending unit ranges between 6 – 113 ohms – use FPE-SF-CUMM-9198
If your stock sending unit ranges between 20 - 220 ohms – use FPE-SF-CUMM-9802
LOW FUEL LEVEL LAMP - This sending unit does NOT include provisions to illuminate the Low Fuel level dash lamp.
*USE ON 1989/1990 MODEL YEAR TRUCKS: This sending unit will work on MY 1989 and 1990 trucks that have a tank swap to a 1991-1997 newer tank.
** For optimal performance, this product has been tested to work with aftermarket lift pumps including AirDog !!-5G with flow rates up to 220 GPH and Fass with flow rates up to 100 GPH.
Fitment:
1991 Dodge Ram D250/D350 5.9L 12V Cummins
1992 Dodge Ram D250/D350 5.9L 12V Cummins
1993 Dodge Ram D250/D350 5.9L 12V Cummins
1994 Dodge Ram 2500/3500 5.9L 12V Cummins
1995 Dodge Ram 2500/3500 5.9L 12V Cummins
1996 Dodge Ram 2500/3500 5.9L 12V Cummins
1997 Dodge Ram 2500/3500 5.9L 12V Cummins
